1056837

Overview

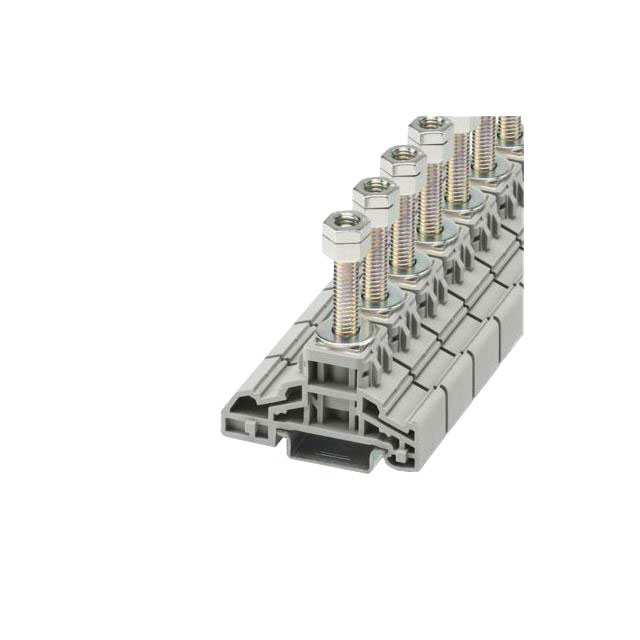

Phoenix Contact part number 1056837 is a high-current connector from the HV M8/1 series. It features a nominal voltage of 1000 V and a maximum current capacity of 150 A. The device utilizes a bolt connection method for secure attachment. It supports wire cross-sections ranging from 2.5 mm² to 50 mm². The connector is designed with a single position configuration.

Feature Summary

• High current rating capability
• Bolt connection method
• Single position design

Applications

• High-voltage power distribution systems
• Industrial machinery electrical connections
• Renewable energy system integration

Procurement Notes

Verify the specific application requirements against the 1000 V nominal voltage and 150 A current limits before procurement. Ensure that the installation environment accommodates the bolt connection method and the specified wire cross-section range of 2.5 mm² to 50 mm². Confirm compatibility with existing system components to prevent operational failures.

Selection Notes

Select this component when high current handling is required in a compact form factor. The bolt connection ensures robust mechanical stability under vibration. Consider the 1000 V rating for high-voltage applications. Evaluate the 2.5 mm² to 50 mm² wire range to match cable specifications. Verify space constraints for the single position layout.

Part Context

This connector belongs to Phoenix Contact's HV M8/1 series, designed for high-power applications. The series emphasizes durability and reliable connectivity in demanding industrial environments. The part integrates safety features suitable for high-voltage operations. It serves as a critical interface in power transmission networks.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Phoenix Contact resources for compatible alternatives if direct replacement is necessary.
