1056838

Overview

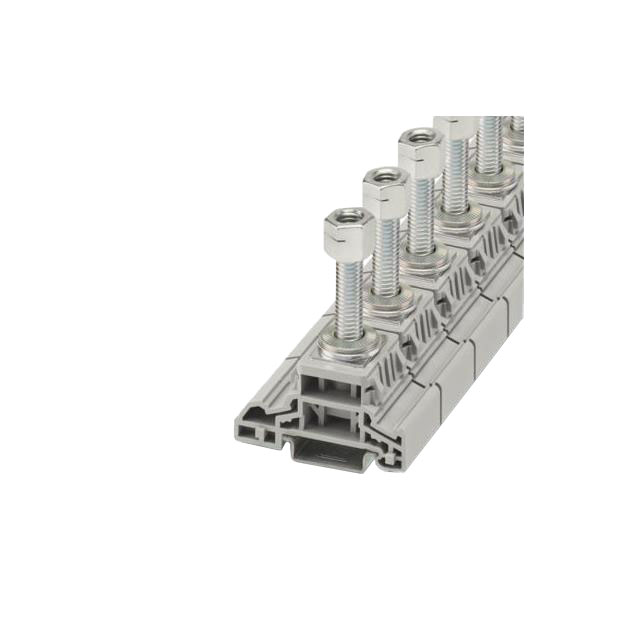

The Phoenix Contact 1056838 is a high-current connector from the HV M10/1 NFF series. It features a nominal voltage of 1000 V and a nominal current capacity of 269 A. The component provides one connection point utilizing a bolt connection method. It supports a rated cross-section of 120 mm², ensuring reliable electrical continuity for high-power applications.

Feature Summary

• Designed for high-voltage and high-current industrial environments
• Utilizes a robust bolt connection mechanism for secure termination
• Supports large conductor cross-sections for efficient power transmission

Applications

• High-voltage power distribution systems
• Industrial machinery with high current requirements
• Electrical cabinet busbar connections

Procurement Notes

Verify that the required conductor cross-section matches the rated 120 mm² specification. Confirm compatibility with the 1000 V nominal voltage rating for your specific circuit design. Ensure the bolt connection method aligns with your assembly tools and torque requirements. Cross-reference the part number 1056838 to ensure correct model identification before procurement.

Selection Notes

Select this component when a single-point high-current connection is required for voltages up to 1000 V. The 269 A current rating dictates suitability for heavy-duty loads. Consider the bolt connection type for installation constraints. Evaluate if the 120 mm² wire capacity meets the cable specifications of the target application.

Part Context

This part belongs to the HV M10/1 NFF series by Phoenix Contact, specialized in high-current connectivity. It serves as a critical interface for transferring significant electrical power within industrial setups. The design prioritizes safety and reliability under high electrical stress conditions.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
