1061424

Overview

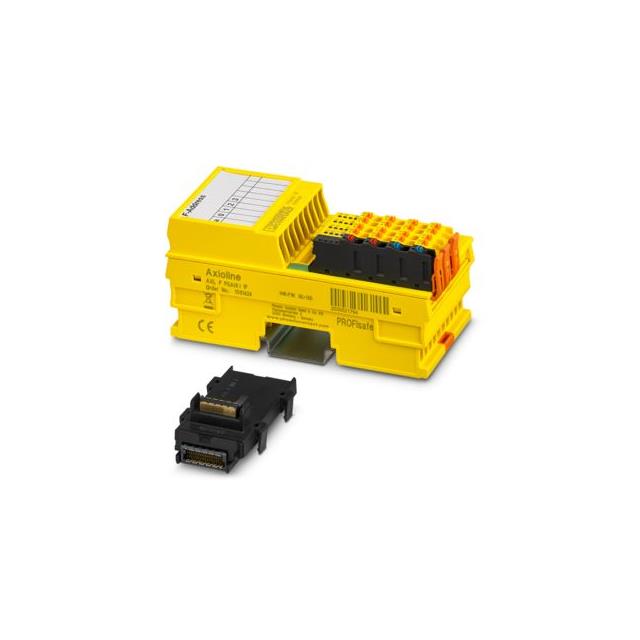

The Phoenix Contact 1061424 is an Axioline F safety module designed for functional safety applications within PROFIsafe systems. It serves as a safe analog input module, specifically engineered to interface with Phoenix Contact or Siemens controllers in PROFINET environments. The unit operates on a 5 V DC supply voltage delivered via the bus base module. Electrical characteristics include a maximum current draw of 110 mA and a typical consumption of 105 mA at the specified bus voltage. The device supports DIN rail mounting and utilizes screw terminal termination styles for secure connections.

Feature Summary

• Integrates functional safety capabilities compliant with PROFIsafe protocols for reliable industrial automation
• Provides safe analog input functionality compatible with major PROFINET controller ecosystems
• Features robust mechanical design suitable for standard DIN rail installation procedures

Applications

• Integration into PROFIsafe networks requiring safe analog signal acquisition
• Connection to Phoenix Contact or Siemens controllers within PROFINET architectures
• Industrial machine safety systems utilizing Axioline F I/O infrastructure

Procurement Notes

Verify that the target system utilizes a 5 V DC bus voltage supplied by a compatible base module. Confirm compatibility with PROFIsafe-enabled controllers from Phoenix Contact or Siemens. Ensure the application requires safe analog inputs rather than standard digital signals. Check that DIN rail mounting space and screw terminal wiring methods align with the existing control cabinet design before procurement.

Selection Notes

Select this module when functional safety standards require certified analog input processing within a PROFINET network. It is appropriate for systems already established with Phoenix Contact or Siemens hardware. Consider the specific current consumption requirements against the available bus power capacity. This component is distinct from standard I/O modules due to its dedicated safety certification and protocol support.

Part Context

This component belongs to the Axioline F product family, which provides modular I/O solutions for industrial automation. The 1061424 variant specifically addresses the need for safe data transmission in critical machinery applications. It complements other Axioline F components by offering specialized safety functions while maintaining high-speed communication capabilities through the PROFINET interface.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing bus base modules and controller firmware versions before attempting any substitution.
