1064041

Overview

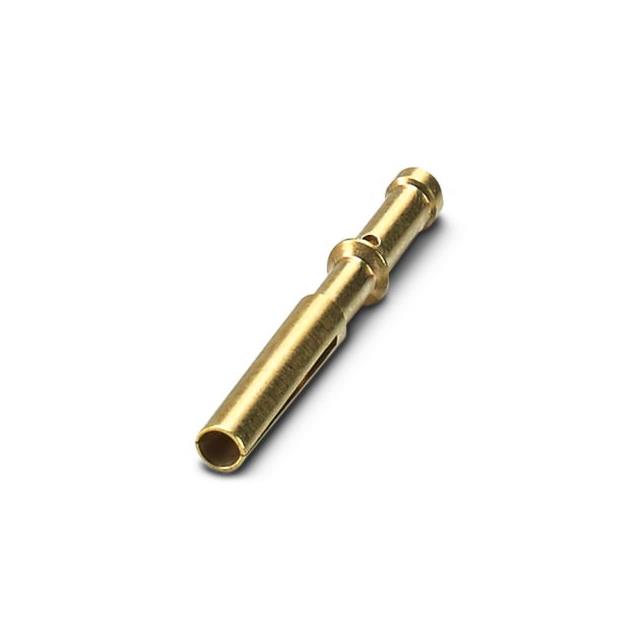

Phoenix Contact part number 1064041, designated as CC1,0-TS-0,34F AU, is a crimp contact socket designed for circular connector systems. The component features a turned contact design with a diameter of 1 mm and utilizes CuZn material. It supports wire cross-sections ranging from 0.14 mm² to 0.34 mm² (AWG 26–22). The stripping length is specified at 4 mm ±0.5 mm. The contact operates within an ambient temperature range of -40 °C to +85 °C.

Feature Summary

• Turned socket contact configuration for reliable electrical connection
• Compatible with flexible conductors within specified cross-section limits
• Snap-in mounting type for secure installation

Applications

• Circular connector assembly integration
• Industrial control panel wiring
• Signal transmission in automated machinery

Procurement Notes

Verify the specific ordering suffix matches the required contact plating and insulation status. Confirm that the purchased quantity aligns with the standard packaging unit of 100 pieces. Ensure compatibility with the corresponding Phoenix Contact housing series before finalizing procurement orders.

Selection Notes

Select this component when a 1 mm diameter turned socket contact is required for flexible wires between 0.14 mm² and 0.34 mm². Consider the -40 °C to +85 °C operating temperature range for environmental suitability. Ensure the application requires a snap-in mounting method compatible with the designated housing series.

Part Context

This component belongs to the Phoenix Contact circular connector contact family. It serves as a female terminal for mating with male pins in industrial connectivity solutions. The designation CC1,0-TS-0,34F AU indicates specific dimensional and material characteristics unique to this product line.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Verify mechanical fit and electrical ratings if considering alternative manufacturers.

FAQ

What is the maximum operating temperature for this crimp contact?

The maximum ambient operating temperature is +85 °C.

Is this contact suitable for solid or flexible conductors?

It is specified for flexible conductors within the 0.14 mm² to 0.34 mm² range.
