1078715

Overview

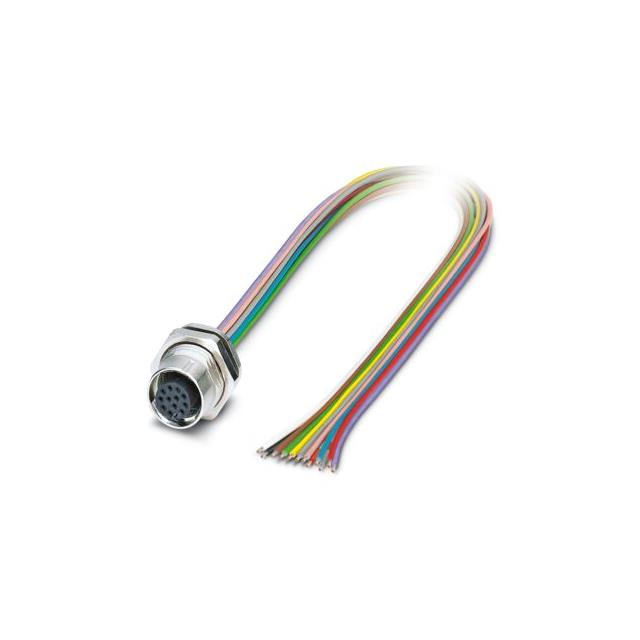

Phoenix Contact part number 1078715 is a rear-mounting device connector from the SACC-DSI-FS series. It features a 12-position female socket with M12-SPEEDCON interface and A-coding. The connector is designed for direct connection to free cable ends using individual strands. It includes an integrated cable length of 1.2 meters. The housing utilizes PG9 strain relief for secure cable attachment. This component is engineered for robust industrial environments requiring reliable signal transmission.

Feature Summary

• Rear mounting design for flush installation
• M12-SPEEDCON interface with A-coding
• Direct connection to free cable ends

Applications

• Industrial automation sensor connections
• Actuator wiring in control cabinets
• Rear panel device interconnects

Procurement Notes

Verify the specific article number 1078715 against technical drawings to ensure compatibility with existing M12 A-coded ports. Confirm that the 1.2-meter cable length meets spatial requirements within the enclosure. Check that the PG9 strain relief matches the installed cable diameter to maintain IP rating integrity during operation.

Selection Notes

Select this model when a fixed-length rear-mounting solution is required for 12-pole applications. Ensure the system voltage and current ratings align with the connector specifications. Consider the straight configuration for space-constrained rear-panel installations where angled connectors are not feasible.

Part Context

This component belongs to Phoenix Contact's SACC-DSI-FS family of device connectors. These connectors are designed for high-density mounting on equipment rear walls. The SPEEDCON technology allows for quick and tool-free cable termination, enhancing assembly efficiency in industrial settings compared to traditional screw-terminal methods.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific configuration.
