1087421

Overview

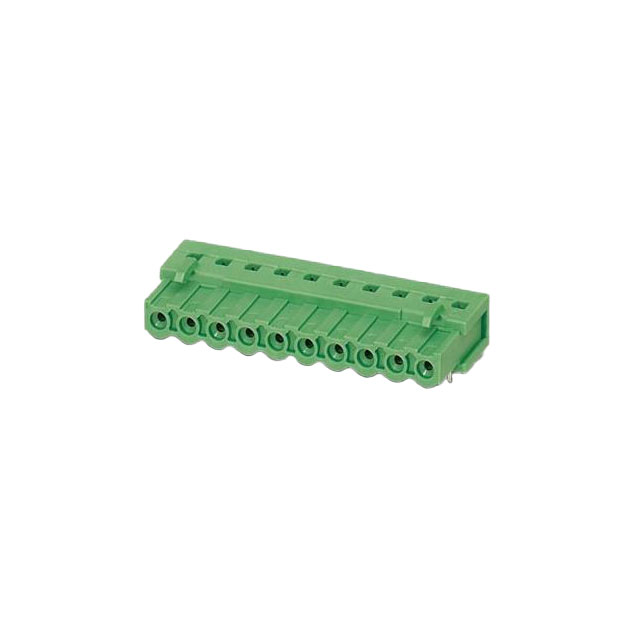

Phoenix Contact part number 1087421 is a PCB socket from the COMBICON Connectors M product line. It features a wire cross-section of 2.5 mm² and a pin spacing (pitch) of 5.08 mm. The component is designed for wave soldering installation methods. The specific item identifier is 1087421.

Feature Summary

• Designed for wave soldering installation on printed circuit boards
• Part of the COMBICON Connectors M series

Applications

• PCB signal and power connections

Procurement Notes

Verify the exact part number 1087421 against official Phoenix Contact documentation to confirm specifications such as pitch, cross-section, and mounting method. Ensure compatibility with wave soldering processes and required PCB footprint dimensions before procurement.

Selection Notes

Select this component when a 5.08 mm pitch PCB socket compatible with wave soldering is required. Confirm that the application supports the specified 2.5 mm² wire cross-section and fits within the COMBICON Connectors M series design constraints.

Part Context

This component belongs to the COMBICON Connectors M series by Phoenix Contact, which provides fixed and plug-in connectors for industrial data, signal, and power transmission. The series typically utilizes screw or spring connection methods, though this specific socket variant is optimized for wave soldering integration.

Replacement Considerations

Consult official Phoenix Contact substitution guides for verified equivalent part numbers. Do not assume generic replacements are compatible without verifying pitch, cross-section, and mounting method alignment.
