10894126

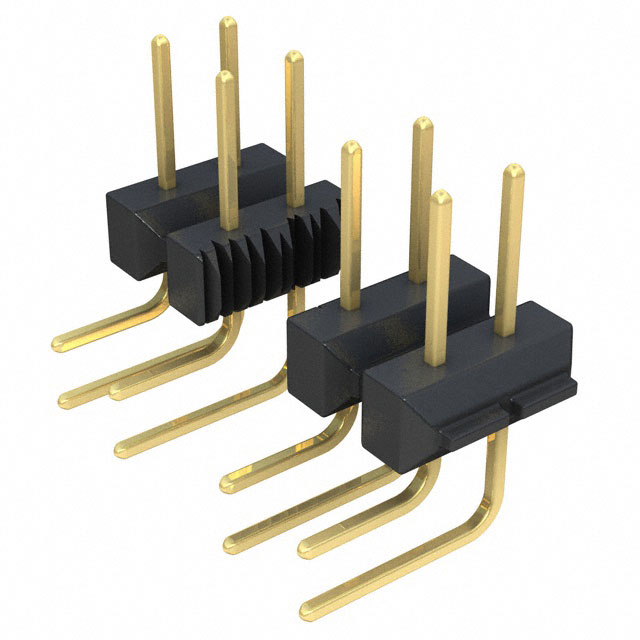

10894126 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER R/A 12POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10894126

• Description：CONN HEADER R/A 12POS 2.54MM
• Series：C-Grid 70216
• Mfr：Molex
• Package：Tube
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：12
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.240" (6.10mm)
• Contact Length - Post：0.110" (2.79mm)
• Overall Contact Length：-
• Insulation Height：0.220" (5.60mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Polyester, Glass Filled
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 10894126
