Overview

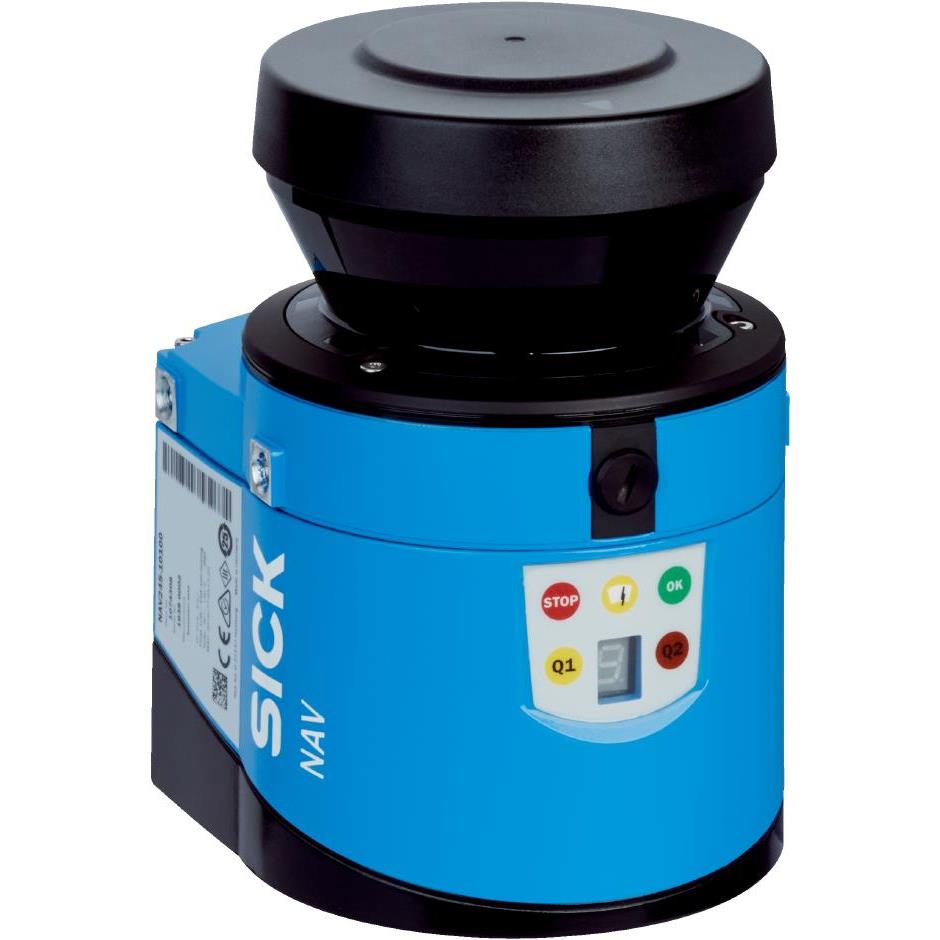

The SICK 1090559 is a NAV245-10100S01 LiDAR sensor utilizing a 905nm laser diode. It features a horizontal field of view of 270 degrees and a scanning frequency of at least 25Hz. The device operates within a working range of 0.5m to 50m, extending to 30m when using reflectors. Angle resolution reaches 0.001° with reflectors and 0.25° for raw data. Detection ranges vary from 18m at 10% reflectivity to 50m at 90% reflectivity.

Feature Summary

• Provides high-resolution distance measurement using Class 1 laser technology for safe operation.
• Delivers comprehensive spatial awareness through a wide 270-degree horizontal scanning angle.
• Supports variable detection distances based on target surface reflectivity conditions.

Applications

• Position detection and dimension determination of cardboard boxes
• Monitoring driving direction and speed for safe movement
• Level measurement inside tanks

Procurement Notes

Verify the specific ordering suffix matches the required configuration. Confirm interface compatibility with existing control systems. Ensure environmental ratings suit the installation location. Check for any mandatory mounting accessories included in the package. Validate regulatory compliance certificates for the target region.

Selection Notes

Choose this model for applications requiring wide-angle coverage without blind spots. Consider the 50m range capability for large-scale logistics environments. Evaluate the 270-degree field of view against specific machine geometry requirements. Assess the need for reflector-assisted ranging if targets are low-reflectivity.

Part Context

This component belongs to the NAV2xx series of LiDAR sensors designed for industrial automation. It integrates hardware and digital solutions for material handling transparency. The product supports sustainable production processes by ensuring reliable operational capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing NAV2xx series configurations before considering alternatives.
