10DAS1

Overview

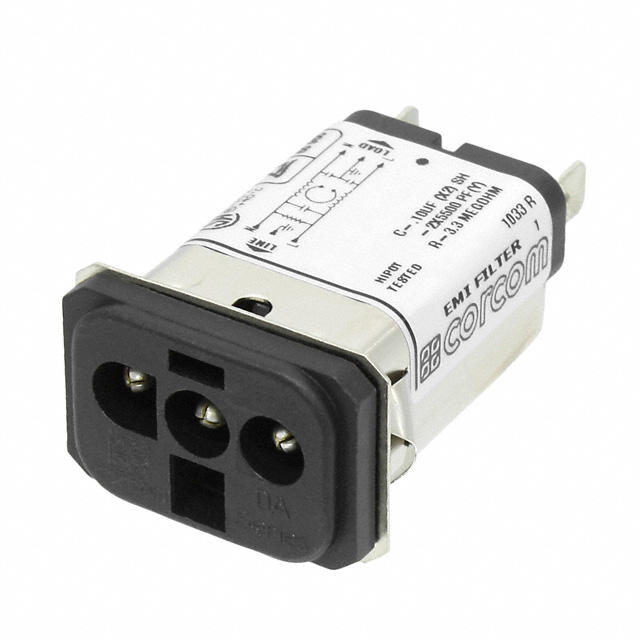

The TE Connectivity Corcom Filters 10DAS1 is a single-phase EMI/RFI power line filter module designed for chassis mounting. It supports a rated current of 10 A and operates at AC voltages of 125 VDC or 250 VAC with a frequency of 50/60 Hz. The component features a two-stage configuration and utilizes faston terminal connections for circuit integration.

Feature Summary

• Provides dual-stage attenuation for effective electromagnetic interference suppression
• Designed for secure flange or chassis mounting applications
• Utilizes faston terminals for straightforward electrical connection

Applications

• General purpose electronic equipment requiring EMI filtering
• Industrial control systems
• Medical device power supplies

Procurement Notes

Verify the specific datasheet version to confirm exact capacitance values and leakage current specifications, as these parameters are critical for compliance with safety standards such as UL, CSA, and VDE. Ensure the selected variant matches the required voltage rating of 125VDC or 250VAC for the target application environment.

Selection Notes

Select this model when a compact, single-phase solution is needed for 10 A circuits. The two-stage design offers higher attenuation than single-stage alternatives. Confirm that the faston terminal pitch matches the PCB or wire harness layout. Consider thermal derating if operating near the upper temperature limit.

Part Context

This component belongs to the Corcom filters family, which specializes in EMI/RFI suppression solutions. The 10DAS1 is part of a broader range of power line filters offered by TE Connectivity, catering to various current ratings and installation types for global regulatory compliance.

Replacement Considerations

Cross-reference with other TE Connectivity Corcom models in the same series for similar current and voltage ratings. Verify mechanical dimensions and terminal configurations before substituting with components from other manufacturers to ensure compatibility.
