10DBAW5

Overview

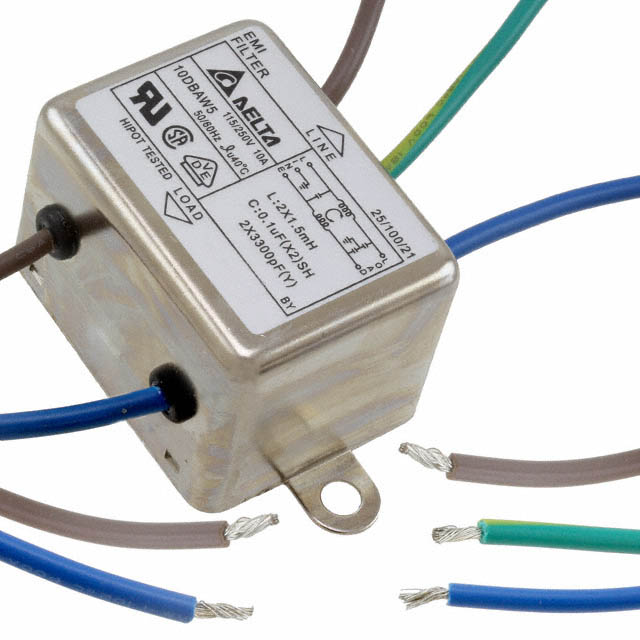

The Delta Electronics 10DBAW5 is a single-phase, single-stage EMC/EMI power line filter designed for chassis mounting. It supports rated AC voltages of 115V and 250V with a continuous current rating of 10A. The component operates at frequencies of 50Hz and 60Hz and features wire lead terminations. It includes an inductance value of 1.5mH and is certified by CSA, UR, and VDE standards.

Feature Summary

• Single-stage filtering configuration for electromagnetic interference suppression
• Chassis mount installation with wire lead termination style
• Certified for international safety compliance including UL, CSA, and VDE

Applications

• General purpose electronic equipment noise reduction
• Industrial control systems requiring EMI suppression
• Power supply input stages for single-phase AC devices

Procurement Notes

Verify the specific datasheet version to confirm current availability status, as some sources indicate potential obsolescence or limited stock for related models in the series. Ensure the wire lead length and chassis mounting hole dimensions match your mechanical design requirements before finalizing procurement orders.

Selection Notes

Select this component when a single-stage filter is sufficient for your EMI attenuation needs. It is suitable for applications operating within the 115V to 250V AC range and drawing up to 10A. Consider the chassis mount form factor if panel integration is required rather than PCB mounting.

Part Context

This part belongs to the DP series of power line filters manufactured by Delta Electronics. These components are engineered for general-purpose noise suppression in AC power lines. The 10DBAW5 variant specifically offers a single-stage solution with wire leads, distinguishing it from multi-stage or terminal block variants within the same product family.

Replacement Considerations

Check for direct substitutes within the Delta DP series that offer identical voltage and current ratings. Verify that any replacement maintains the single-stage topology and chassis mount compatibility to ensure seamless integration without mechanical modifications.
