10DKAG5

Overview

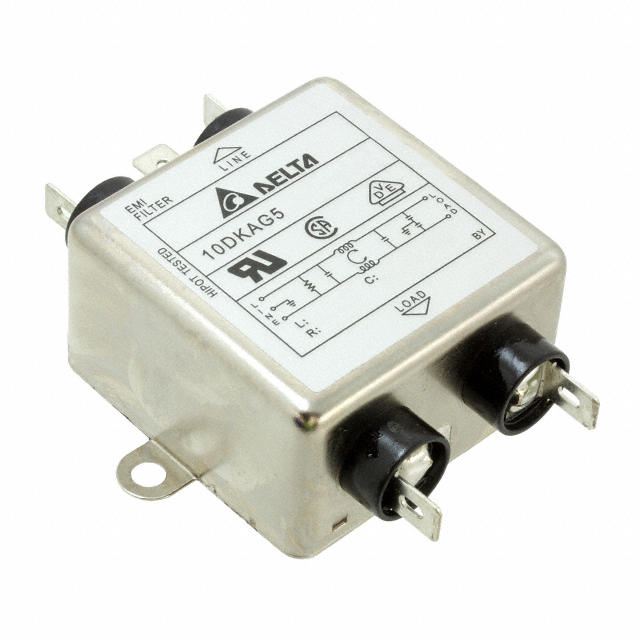

The Delta Electronics 10DKAG5 is a single-phase EMC/EMI line filter designed for AC power line noise suppression. It supports rated voltages of 115VAC and 250VAC at operating frequencies of 50Hz and 60Hz, with a maximum current rating of 10A. The unit features quick-connect terminals for circuit integration and chassis mounting for physical installation. Electrical safety specifications include a hipot rating of 2250VDC line-to-ground and a maximum leakage current of 2mA at 250VAC 50Hz with 10000pF capacitance.

Feature Summary

• Provides effective suppression of both line-to-line and line-to-ground electromagnetic interference noise
• Holds UL recognition, CSA certification, and VDE approval for global compliance

Applications

• Single-phase AC power input filtering for electronic equipment
• Chassis-mounted EMI suppression in industrial control systems
• Noise reduction in medical or laboratory instrumentation power supplies

Procurement Notes

Verify the specific suffix designation against official Delta Electronics documentation to confirm terminal type and voltage ratings. Ensure the procurement specification matches the required current capacity and mounting configuration. Confirm regulatory certifications such as UL, CSA, and VDE are explicitly listed for the exact part number variant being sourced to guarantee compliance with target market standards.

Selection Notes

Select this component when a single-stage filter solution is required for 10A applications. Verify that the quick-connect interface aligns with existing PCB or wire harness designs. Confirm that the chassis mounting dimensions fit the available enclosure space. Ensure the leakage current limits meet the safety requirements of the final system design.

Part Context

This component belongs to the Delta Electronics general-purpose filter series, which includes various current ratings and terminal configurations. The 10DKAG5 specifically denotes a 10A rating with quick-connect terminals. Other variants in the series may differ in current handling, voltage ratings, or mechanical connection types while sharing similar core filtering technologies.

Replacement Considerations

Consult official Delta Electronics substitution guides for verified equivalents. Cross-reference current ratings, voltage specifications, and terminal styles before replacing.
