10DKAS5

Overview

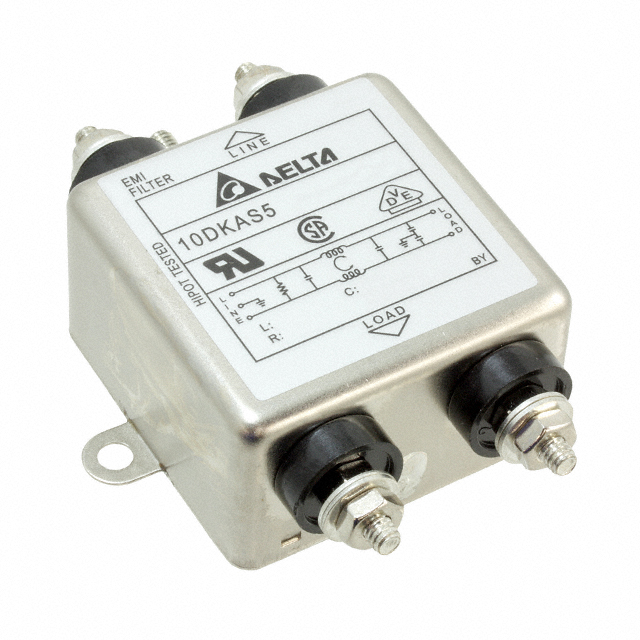

The Delta Electronics 10DKAS5 is a single-phase EMI/EMC power line filter designed for general-purpose applications. It operates at rated AC voltages of 115V and 250V with a continuous current rating of 10A. The unit features a single-stage configuration and provides an inductance of 1.7mH. Designed for chassis mounting, it utilizes threaded post termination style compatible with 8-32 threads. The filter supports standard operating frequencies of 50Hz to 60Hz.

Feature Summary

• Single-stage electromagnetic interference suppression for single-phase circuits
• Chassis mount construction with threaded post termination
• Rated for dual voltage standards of 115VAC and 250VAC

Applications

• General purpose electronic equipment noise suppression
• Industrial control panel input filtering
• Power supply input stage protection

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer documentation may update terminal specifications or mechanical dimensions over time. Confirm that the 8-32 threaded post termination matches your chassis hole pattern and hardware requirements. Ensure the 10A current rating and 1.7mH inductance align with your circuit design constraints before finalizing procurement.

Selection Notes

Select this component when a single-stage solution is sufficient for your EMI reduction needs. The 10A rating suits moderate power loads, while the 1.7mH inductance offers baseline attenuation. Consider the chassis mount form factor if space allows for direct panel installation. Verify compatibility with both 115V and 250V systems if the equipment operates across different regional voltage standards.

Part Context

This component belongs to Delta Electronics' series of general-purpose power line filters. These modules are engineered to mitigate conducted emissions from switching power supplies and other noisy loads. The 10DKAS5 variant specifically addresses single-phase AC line requirements, providing essential compliance support for electromagnetic compatibility regulations in commercial and industrial environments.

Replacement Considerations

Cross-reference with other Delta single-phase filters such as the 03DRCG5 for lower current alternatives. Ensure any substitute maintains the 10A rating and 1.7mH inductance to preserve circuit performance. Verify that replacement units offer identical 8-32 threaded post termination to avoid mechanical modification during installation.
