Product Detailed Parameters
- Description：LINE FILTER 115/250VAC PANEL MNT
- Series：DK
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：-
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：1.7mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

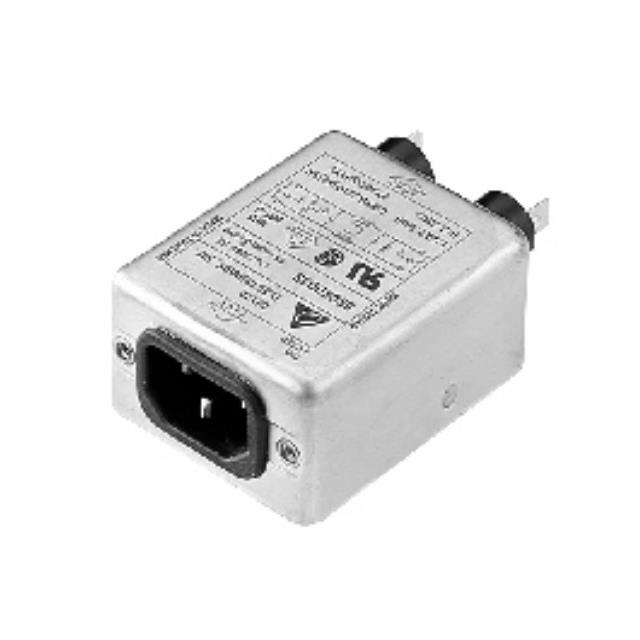

The 10DKDG3S is a single-phase EMC/EMI line filter module manufactured by Delta Electronics. It features a current rating of 10 A and voltage ratings of 115 VAC and 250 VAC at 50/60 Hz. The unit utilizes an IEC 320-C14 connector interface with quick connect terminals. Leakage current ranges from 0.25 to 0.45 mA. Designed for chassis mounting, it serves as a general-purpose filter for AC power entry applications.
Feature Summary
- Single-stage electromagnetic interference suppression
- IEC 320-C14 input connector integration
- Quick connect terminal configuration
Applications
- General purpose AC power entry modules
- Chassis mounted equipment filtering
- Single phase EMC compliance systems
Procurement Notes
Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that the quick connect terminal style matches the target PCB or wire harness requirements. Ensure the chassis mounting dimensions align with the enclosure design. Check for any regional regulatory certifications required for the final assembly destination.
Selection Notes
Select this component when a single-stage filter solution is sufficient for the application's noise environment. The 10 A rating supports moderate power loads within the specified voltage range. The IEC C14 interface simplifies integration with standard power cords. Consider leakage current limits if strict safety isolation is required in the final system design.
Part Context
This part belongs to Delta Electronics' general purpose filter series. It is designed for AC power entry modules requiring basic EMI suppression. The product line focuses on standard industrial and commercial power distribution needs. It complements other single-phase filtering solutions offered by the manufacturer.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting hardware and terminal connections when considering alternative components.
