10DPCG5

Overview

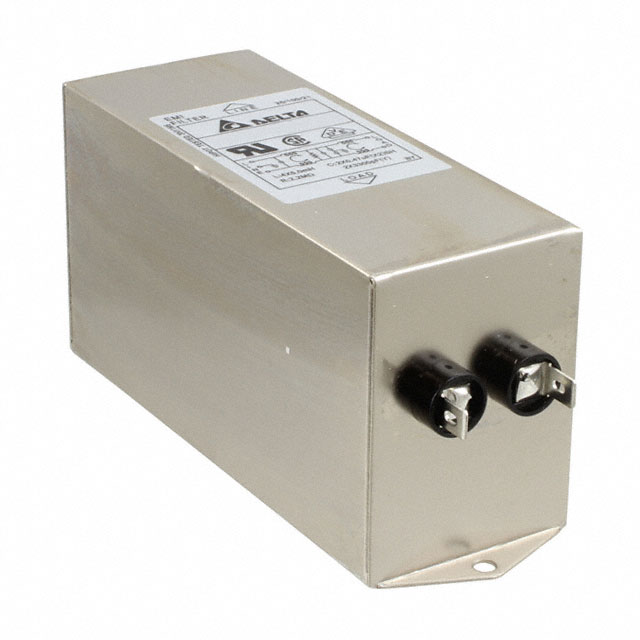

The Delta Electronics 10DPCG5 is a single-phase, two-stage EMC/EMI power line filter designed for chassis mounting. It supports AC voltages of 115V and 250V with a rated current of 10A at operating frequencies of 50Hz and 60Hz. The component utilizes tab connectors for termination and carries CSA, UR, and VDE certifications.

Feature Summary

• Two-stage filtering architecture for effective noise suppression
• Chassis mount installation style for secure integration
• Tab connector termination for straightforward wiring

Applications

• Switching transient mitigation
• General purpose EMI filtering
• Industrial equipment power conditioning

Procurement Notes

Verify the End of Life notification dated June 1, 2026, which indicates this model will be discontinued. Confirm final purchase dates and availability through authorized distributors before committing to production designs. Ensure replacement strategies are in place due to the impending obsolescence status.

Selection Notes

Select this component for applications requiring robust chassis-mounted EMI protection in standard 50/60Hz environments. The 10A rating suits moderate power loads. Verify that tab connectors align with existing harness designs and that chassis mounting provisions accommodate the physical dimensions specified in the datasheet.

Part Context

This part belongs to the DP series of switching transient filters manufactured by Delta Electronics. It is categorized under power line filter modules intended for general-purpose electromagnetic interference reduction in AC power circuits.

Replacement Considerations

Consult official documentation for confirmed substitute part numbers. No specific substitutes are listed in the provided source material.
