Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 10A CHAS
- Series：DR
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1mH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

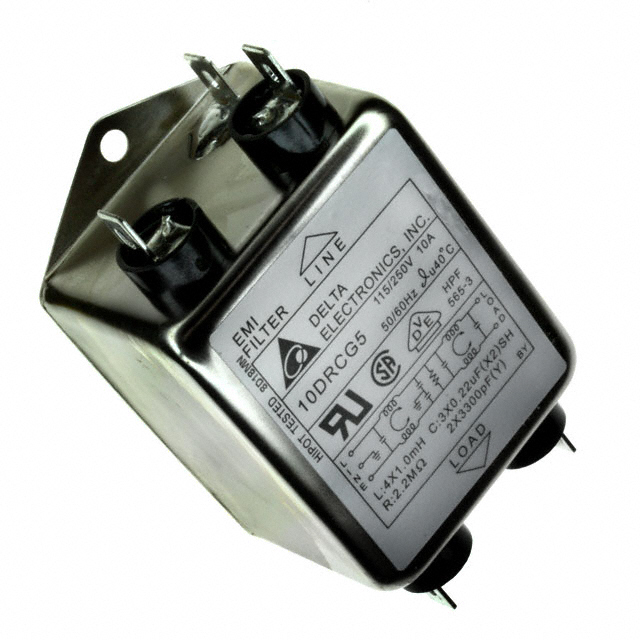

The Delta Electronics 10DRCG5 is a single-phase EMI/EMC line filter designed for AC-powered systems. It features a two-stage configuration with a current rating of 10 A and voltage ratings of 115 VAC and 250 VAC at 50/60 Hz. The unit utilizes quick connect tab connectors for termination and supports flange mounting. Leakage current ranges from 0.25 to 0.45 mA.
Feature Summary
- Two-stage filtering architecture for effective conducted emission suppression
- Quick connect tab connector termination style
- Flange mount installation design
Applications
- AC-powered electronic equipment requiring EMI/RFI suppression
- Power line filtering applications
- General industrial electronics
Procurement Notes
Verify the part status as Last Time Buy before ordering, as availability may be limited. Confirm that the quick connect tab terminals match your wiring harness specifications. Ensure the flange mount dimensions align with your chassis or panel cutouts. Check RoHS compliance details in the official datasheet for regulatory requirements.
Selection Notes
Select this component when a single-phase, two-stage filter is required for 10 A circuits. The 115 VAC/250 VAC rating suits various global mains voltages. The flange mount and quick connect options simplify assembly compared to wire-wire or screw terminal alternatives. Verify leakage current limits against safety standards if applicable.
Part Context
This component belongs to the DR series of power line filters manufactured by Delta Electronics. It is categorized under EMC/EMI filters and power condition subcategories. The product is distinct from the DP series, which may feature different mounting styles or current ratings.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Delta Electronics directly for cross-reference information or equivalent models within the DR series.
FAQ
What is the leakage current specification?
The leakage current is specified between 0.25 mA and 0.45 mA.
How is the 10DRCG5 terminated?
It uses a tab connector termination style with quick connect capabilities.
