10DRCS5

Overview

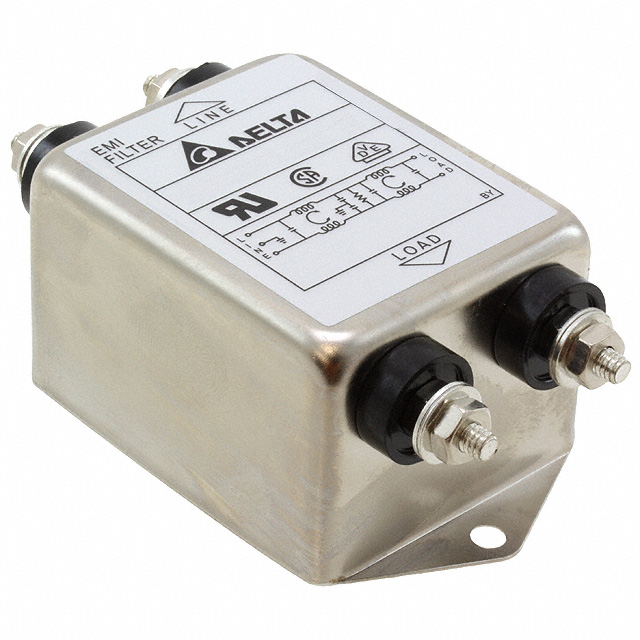

The Delta Electronics 10DRCS5 is a single-phase, two-stage switching transient filter designed for chassis mounting. It supports rated voltages of 115 VAC and 250 VAC with a current rating of 10 A at 50/60 Hz. The unit utilizes threaded post termination (8-32) and exhibits a leakage current of 2 mA. Certified by UL, CSA, and VDE, this component belongs to the DP series and is packaged in bulk.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount construction with threaded post connections
• Dual voltage compatibility for 115 VAC and 250 VAC systems

Applications

• Industrial equipment power conditioning
• Electrical control panel integration
• EMC compliance for AC powered devices

Procurement Notes

Verify the specific datasheet revision before procurement, as manufacturer documentation indicates potential discontinuation status for this model. Confirm that the 8-32 threaded post termination matches your chassis design requirements. Ensure the 10 A current rating and 2 mA leakage current specifications align with your system's safety and performance constraints prior to ordering.

Selection Notes

Select this component when a robust, two-stage solution is required for single-phase AC lines up to 250 VAC. The chassis mount style and threaded post interface make it suitable for applications where PCB-mounted filters are insufficient. Consider the physical dimensions and weight if space or structural support within the enclosure is limited.

Part Context

This part belongs to Delta Electronics' DP series of power line filters. It serves as an EMI/EMI suppression device for general-purpose industrial applications. The component is distinct from socket-mounted or DIN-rail variants within the broader product family.

Replacement Considerations

Public sources indicate this model may be obsolete. Verify availability through official channels or consult Delta Electronics for direct substitute recommendations.
