10DRCW5

Overview

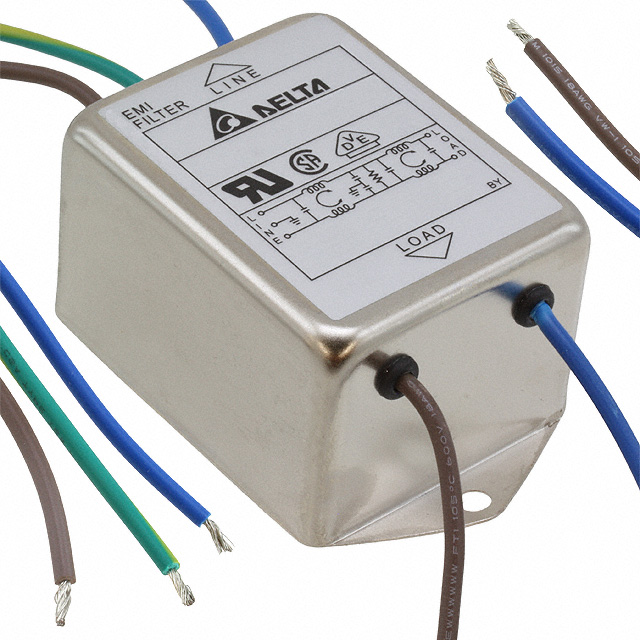

The Delta Electronics 10DRCW5 is a single-phase, two-stage power line filter designed for chassis mounting. It features wire-to-wire termination and supports voltage ratings of 115 VAC and 250 VAC with a current rating of 10 A. Operating at 50 Hz or 60 Hz, the unit exhibits a leakage current of approximately 0.25 to 0.45 mA. Certified by UL, CSA, and VDE, it belongs to the DP series and weighs 862.35 g.

Feature Summary

• Two-stage filtering architecture for enhanced EMI/RFI suppression
• Chassis mount design with wire lead terminations
• Compliant with major international safety standards including UL, CSA, and VDE

Applications

• Industrial equipment requiring EMI suppression
• Medical devices needing certified power line filtering
• Commercial machinery utilizing single-phase AC power

Procurement Notes

Verify component authenticity through authorized channels. Confirm datasheet revisions match specific lot codes. Ensure chassis mounting hardware compatibility prior to installation. Check for end-of-life status as manufacturing may be discontinued. Validate certification marks against current regulatory requirements.

Selection Notes

Select this model for applications requiring robust two-stage attenuation in a compact chassis-mount form factor. Ensure input voltage does not exceed 250 VAC and continuous current remains within 10 A limits. Verify that wire termination methods align with system wiring infrastructure. Consider weight constraints due to the substantial metal housing mass.

Part Context

This component is part of Delta Electronics' DP series power line filters. It serves as an electromagnetic interference suppression device for AC power lines. The product falls under the broader category of power condition modules used in industrial and commercial environments to ensure signal integrity and regulatory compliance.

Replacement Considerations

The 10DPCW5 is a related variant within the same series. Verify pinout and terminal configuration compatibility before substitution. Confirm identical voltage and current ratings to maintain circuit safety margins.
