10DSCG5

Overview

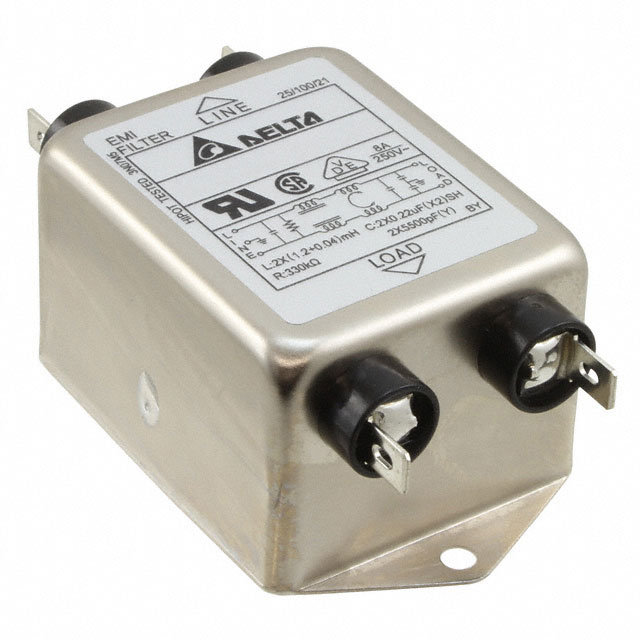

The Delta Electronics 10DSCG5 is a single-phase, two-stage EMC/EMI power line filter designed for chassis mounting. It supports AC voltages of 115V and 250V at frequencies of 50Hz and 60Hz with a rated current of 10A. The component utilizes lug-to-lug termination styles and features a leakage current of 2mA. Certified by UL, CSA, and VDE, it belongs to the DP series and is packaged in bulk quantities.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation for secure integration
• Lug-to-lug terminal configuration for direct wiring

Applications

• Industrial machinery power conditioning
• Medical equipment EMI mitigation
• General purpose power line filtering

Procurement Notes

Verify end-of-life status and discontinuation notifications prior to procurement. Confirm that lug-to-lug termination requirements match system design specifications. Ensure chassis mounting provisions accommodate the physical dimensions. Validate certification compliance (UL, CSA, VDE) against regional regulatory standards before finalizing orders.

Selection Notes

Select this model when dual-stage attenuation is required for sensitive electronic loads. The 10A rating suits moderate power applications operating at standard utility frequencies. Lug terminals are appropriate for rigid busbar or heavy-gauge wire connections. Chassis mounting provides superior thermal dissipation compared to panel-mounted alternatives.

Part Context

This component belongs to Delta Electronics' DP series of power line filters. It serves as an electromagnetic interference suppression device within AC power input stages. The unit integrates passive filtering elements to attenuate conducted emissions across both differential and common-mode noise spectra.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mechanical mounts and electrical ratings if considering alternative manufacturers.
