10DVCG5

Overview

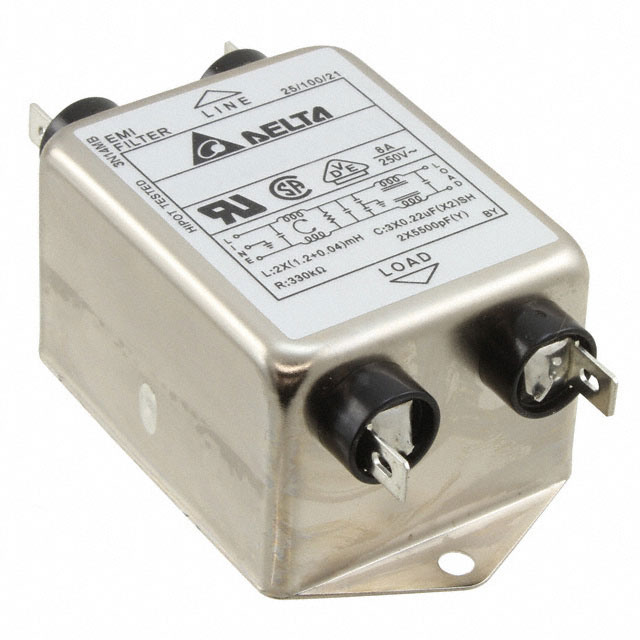

The Delta Electronics 10DVCG5 is a single-phase EMC/EMI power line filter designed for chassis mounting. It operates at 50 Hz and 60 Hz with rated AC voltages of 115 VAC and 250 VAC. The component supports a current rating of 10 A and features a two-stage filtering configuration. Termination is provided via quick-connect terminals, and it includes an inductance value of 970µH. The unit holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Single-phase two-stage EMI/EMC filtering architecture
• Chassis mount installation style
• Quick-connect terminal termination
• Certified by UL, CSA, and VDE

Applications

• General purpose switching transient suppression
• Industrial equipment power input protection
• Electronic device EMC compliance

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with system voltage and current requirements. Confirm that the chassis mount form factor and quick-connect terminal type match the existing design constraints. Check for any recent product change notifications or end-of-life status updates from Delta Electronics prior to finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, chassis-mount solution is required for 10A applications operating at standard 50/60Hz frequencies. Ensure the enclosure allows for direct chassis mounting and that the circuit board or wiring harness accommodates quick-connect terminals. Verify that the two-stage attenuation characteristics meet the specific electromagnetic interference suppression needs of the target application.

Part Context

This model belongs to the DP series of power line filters manufactured by Delta Electronics. The series offers various configurations for single-phase applications, ranging from lower to higher current ratings. These filters are engineered to address common mode and differential mode noise in AC power lines, supporting global compliance standards through multiple certification bodies.

Replacement Considerations

The 10DSCG5 is a related model within the same series, sharing similar electrical ratings but potentially differing in physical dimensions or terminal specifics. Verify mechanical fit and terminal orientation before substitution. No other direct substitute part numbers are confirmed in public documentation.
