10EB1

Overview

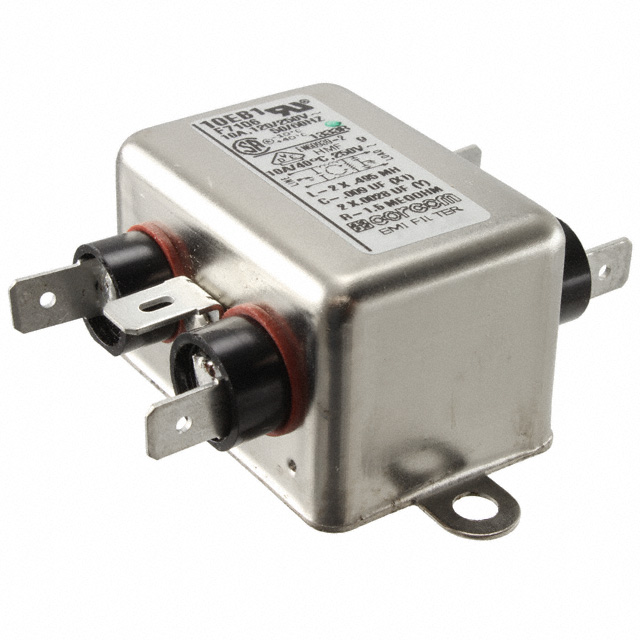

The TE Connectivity Corcom Filters 10EB1 is a single-phase, single-stage EMI/RFI power line filter designed for chassis mounting. It features a current rating of 10 A and a voltage rating of 250 VAC. The unit utilizes quick connect terminals for electrical termination and operates at frequencies of 50 Hz or 60 Hz. Certified by UL, CSA, and VDE, this component belongs to the B series and is intended for general-purpose noise suppression in AC power applications.

Feature Summary

• Single-stage EMI/RFI filtering configuration
• Chassis mount installation style
• Quick connect terminal termination

Applications

• General purpose AC power line noise suppression
• Industrial equipment power input stages
• Commercial electronic device EMC compliance

Procurement Notes

Verify the specific datasheet version for the 10EB1 model to confirm exact leakage current values and insertion loss characteristics, as these parameters define its performance envelope. Ensure that the quick connect terminal dimensions match the mating connector specifications on the target PCB or wire harness. Confirm that the chassis mounting hole pattern aligns with the enclosure design requirements before finalizing procurement.

Selection Notes

Select the 10EB1 when a single-stage filter solution is sufficient for the required attenuation levels in a 10 A, 250 VAC circuit. This component is appropriate for applications where space constraints favor chassis mounting over panel installation. Consider the quick connect interface if direct wiring to terminal blocks is preferred over soldering or screw terminals. Evaluate the B series family for compatibility with other system components.

Part Context

The 10EB1 is part of the TE Connectivity Corcom Filters B series, which offers various configurations for power line conditioning. This series provides standardized solutions for electromagnetic interference reduction in AC power systems. The component integrates passive filtering elements within a robust housing suitable for industrial environments. It serves as a fundamental building block for ensuring signal integrity in sensitive electronic loads.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative models from different manufacturers.
