Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：EB, Curtis Industries/PREO
- Mfr：Curtis Industries
- Package：-
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

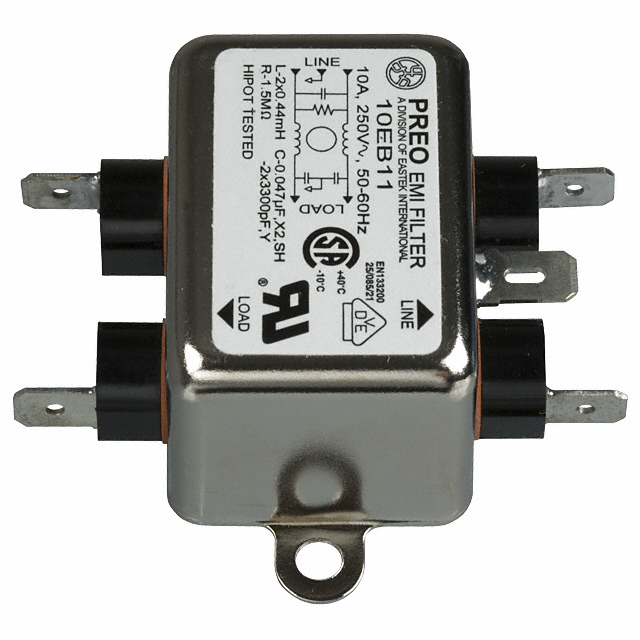

The Curtis Industries 10EB11 is a single-phase EMC/EMI line filter module designed for chassis mounting. It provides electrical noise suppression with a rated current of 10A and operates at voltages up to 250VAC at 50/60Hz. The unit utilizes a quick connect interface for circuit integration. This component belongs to the Power Line Filter Modules catalog, offering a single-stage filtering solution for power line applications.
Feature Summary
- Single-phase electromagnetic interference (EMI) and radio frequency interference (RFI) suppression
- Chassis mount construction for secure installation
- Quick connect terminal interface for simplified wiring
Applications
- Power supply input filtering
- Industrial equipment noise reduction
- Consumer electronics EMI mitigation
Procurement Notes
Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the quick connect terminals match your existing wiring harness specifications. Ensure the chassis mounting dimensions are compatible with your enclosure design. Check for RoHS compliance status if required by your manufacturing standards.
Selection Notes
Select this component when single-phase noise filtration is required for circuits operating up to 250VAC and 10A. The chassis mount style is suitable for fixed installations where space allows for panel or frame attachment. Consider the quick connect interface if rapid assembly or disassembly is necessary for maintenance purposes.
Part Context
This part is categorized under Power Line Filter Modules within the Curtis Industries portfolio. It serves as an active component for managing electromagnetic compatibility in AC power lines. The product is distinct from barrier strips or general interconnects, focusing specifically on signal integrity and noise attenuation.
Replacement Considerations
Public confirmed substitute part numbers were not identified in the provided documentation. Verify pinout and electrical characteristics carefully when considering alternative manufacturers.
