10EB3

Overview

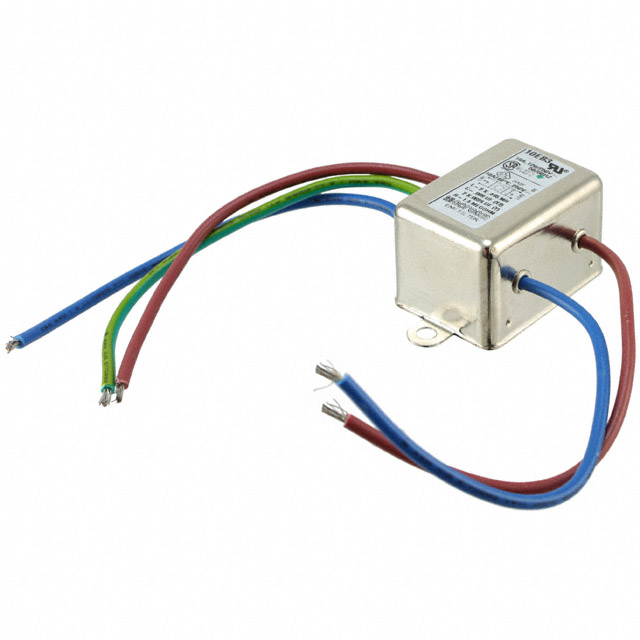

The TE Connectivity Corcom Filters 10EB3 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a general-purpose configuration with a 10 A current rating and supports AC voltages of 120 V and 250 V at 50/60 Hz. The unit utilizes wire lead termination and employs a single-stage filtering architecture. Certified by CSA, UR, and VDE, it is suitable for applications requiring low leakage current characteristics.

Feature Summary

• Designed for high impedance loads at low current
• Features low leakage current characteristics
• Single-stage EMI/RFI filtering architecture

Applications

• General-purpose electronic equipment
• Medical devices
• Industrial control systems

Procurement Notes

Verify the specific datasheet version to confirm compliance with current RoHS directives and REACH regulations. Ensure the chassis mounting dimensions and wire lead lengths match the enclosure design. Confirm that the single-stage attenuation meets the electromagnetic compatibility requirements of the target application environment.

Selection Notes

Select this component when a single-stage filter is sufficient for noise suppression in general-purpose applications. The 10 A rating accommodates moderate power loads. Verify that the low leakage current specification aligns with safety standards for sensitive or medical-grade equipment where personnel protection is critical.

Part Context

This part belongs to the Corcom B series of single-phase filters. It is manufactured by TE Connectivity under the Corcom brand. The internal manufacturer number is 1-6609020-0. It is classified as an active product within the power line filter module category.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
