10EDK1

Overview

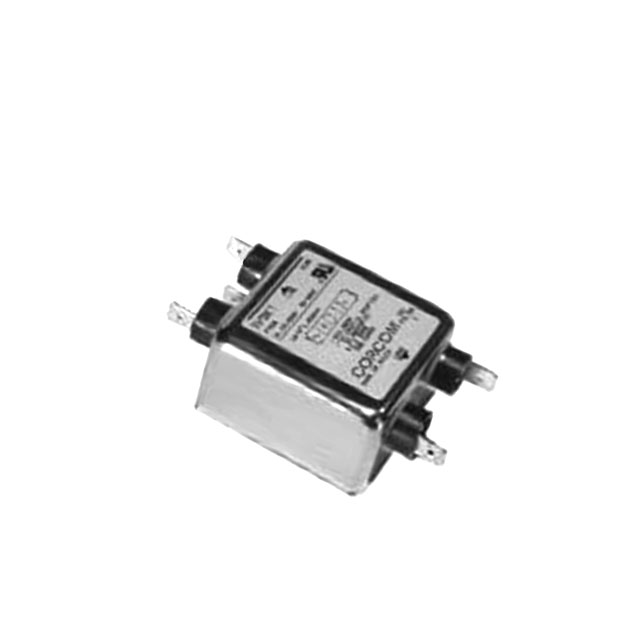

The TE Connectivity Corcom Filters 10EDK1 is a single-phase EMI/RFI power line filter designed for chassis mounting. It operates at a rated current of 10 A and supports AC voltages of 120V or 250V at 50/60Hz frequencies. The component features a single-stage filter configuration with an inductance of 495µH. Termination is achieved via quick-connect terminals, suitable for general-purpose applications requiring electromagnetic interference suppression.

Feature Summary

• Provides single-stage EMI/RFI suppression for power lines
• Designed for direct chassis mounting installation
• Utilizes quick-connect terminal style for wiring

Applications

• General purpose electronic equipment filtering
• Power line noise suppression
• Chassis-mounted industrial control units

Procurement Notes

Verify the specific datasheet version to confirm exact termination dimensions and mounting hole patterns before integration. Ensure the application voltage does not exceed the 250VAC rating. Confirm that the quick-connect terminal spacing matches the PCB or wire harness design requirements for the 10EDK1 model.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the required attenuation levels. The 10A current rating defines the maximum continuous load capacity. Consider the chassis mounting requirement as it differs from panel-mount receptacle styles found in other Corcom series.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, specifically categorized under Power Line Filter Modules. It serves as a passive component for managing electromagnetic compatibility in AC power circuits, distinct from active filtering solutions or IEC inlet assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
