10EDP

Overview

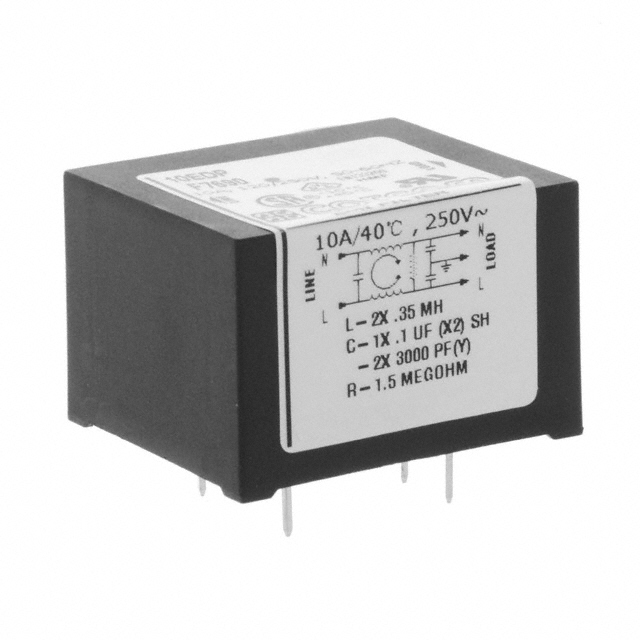

The TE Connectivity Corcom Filters 10EDP is a single-phase EMI/RFI power line filter designed for through-hole PCB mounting. It features a one-stage configuration with a rated current of 10 A and a voltage rating of 250 VAC at 50/60 Hz. The component utilizes solder pin termination and exhibits a leakage current of 380 uA. Certified by UL, CSA, VDE, and EN standards, it operates within standard commercial temperature ranges.

Feature Summary

• Single-stage filtering architecture for compact circuit board integration
• Through-hole solder pin termination for reliable PCB attachment
• Compliance with major international safety and EMC certification bodies

Applications

• Commercial electronic equipment requiring EMI suppression
• Medical devices needing certified power line filtration
• Industrial control systems utilizing single-phase AC inputs

Procurement Notes

Verify the specific datasheet version to confirm compliance with RoHS3 directives and REACH regulations. Ensure the selected variant matches the required leakage current specifications for sensitive applications. Confirm that the through-hole footprint aligns with the target PCB design before ordering.

Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction requirements. The 10 A rating supports moderate load currents in single-phase circuits. Verify that the 380 uA leakage current meets safety limits for the intended end-use environment.

Part Context

This part belongs to the Corcom EDP series, which focuses on single-stage filters for currents ranging from 1 to 10 Amps. These components are engineered for direct printed circuit board installation, offering a balance between performance and space efficiency compared to larger chassis-mounted alternatives.

Replacement Considerations

Consult the official Corcom selector chart for equivalent single-stage filters. Verify that any substitute maintains the same 10 A current rating, 250 VAC voltage rating, and through-hole mounting compatibility.
