10EHT1

Overview

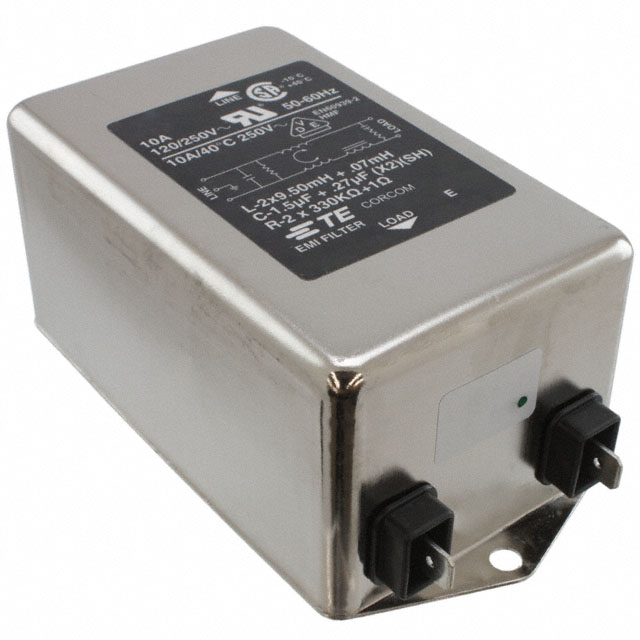

The TE Connectivity Corcom Filters 10EHT1 is a single-phase EMC/EMI power line filter designed for chassis or panel mounting. It features a flange mount style with quick connect (Faston) terminals rated at 1/4 inch. The component supports a continuous current of 10 A and operates at voltages up to 250 VAC at 50 Hz or 60 Hz. It utilizes a single-stage filtering configuration to suppress electromagnetic interference.

Feature Summary

• Single-stage EMI/RFI suppression for AC power lines
• Flange mount mechanical design for secure installation
• Quick connect terminal interface for simplified wiring

Applications

• Industrial equipment power input stages
• Commercial machinery noise reduction
• General purpose AC power conditioning

Procurement Notes

Verify the specific datasheet version for leakage current and attenuation specifications, as these values are critical for compliance. Confirm that the 1/4 inch Faston terminal dimensions match the mating connector requirements in the target assembly. Ensure the operating temperature range aligns with the environmental conditions of the final application.

Selection Notes

Select this model when a single-stage filter solution is sufficient for the required noise attenuation levels. The 10 A rating determines the maximum load capacity, while the 250 VAC rating defines the voltage compatibility. Consider the physical dimensions of the flange mount to ensure adequate space within the enclosure layout.

Part Context

This component belongs to the TE Connectivity Corcom Filters product line, which specializes in EMI/RFI suppression solutions. The 10EHT1 variant specifically addresses applications requiring robust power line filtering with standard industrial mounting and connection interfaces.

Replacement Considerations

Consult official substitution charts for equivalent single-stage filters with matching 10 A ratings and flange mount configurations. Verify terminal type and spacing compatibility before replacing.
