10EK7

Overview

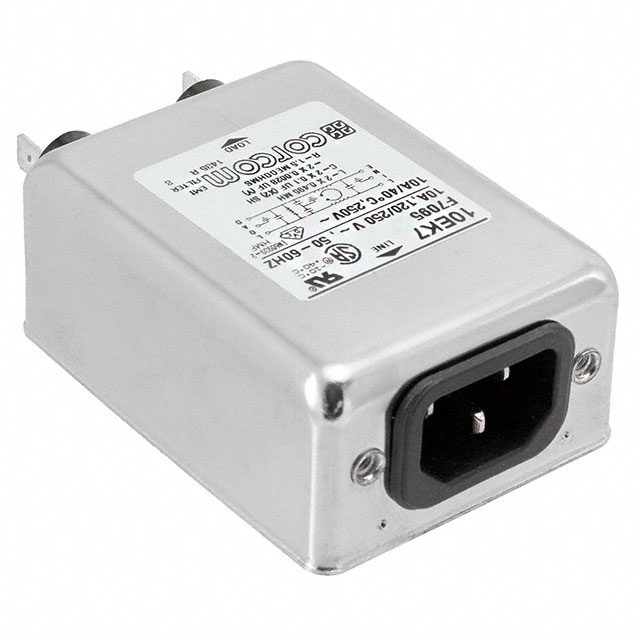

The 10EK7 is a single-phase EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It operates at 50 Hz and 60 Hz with a voltage rating of 250 VAC and a current capacity of 10 A. The unit features a single-stage configuration with an inductance of 495µH. Designed for chassis mounting, it utilizes IEC 320-C14 connectors and quick connect terminals. The component functions within an ambient temperature range of -10°C to +40°C.

Feature Summary

• Provides electromagnetic interference suppression for high impedance loads
• Supports pulsed, continuous, or intermittent radio frequency interference applications
• Features single-stage filtering architecture for efficient noise reduction

Applications

• General-purpose RFI power line filtering
• Equipment requiring high impedance load compatibility
• Industrial control systems subject to pulsed interference

Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to confirm terminal style and certification requirements. Confirm RoHS compliance status as regulatory classifications may vary by production batch. Ensure the chassis mounting interface matches the intended enclosure design before procurement.

Selection Notes

Select this model for applications requiring 10 A continuous current handling at 250 VAC. The single-stage design suits environments where moderate attenuation is sufficient. Verify that the operating temperature range of -10°C to +40°C aligns with the installation environment constraints.

Part Context

This component belongs to the K series of power line filters from TE Connectivity Corcom Filters. The series offers various current ratings and configurations tailored for general electronic equipment protection. The 10EK7 specifically addresses needs for compact, chassis-mounted solutions in standard AC power distribution networks.

Replacement Considerations

Consult official substitution guides for equivalent models within the same series. Verify that alternative parts match the 10 A rating, 250 VAC specification, and physical mounting dimensions to ensure functional interchangeability.
