Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：K
- Mfr：TE Connectivity Corcom Filters
- Package：Bag
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：495µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

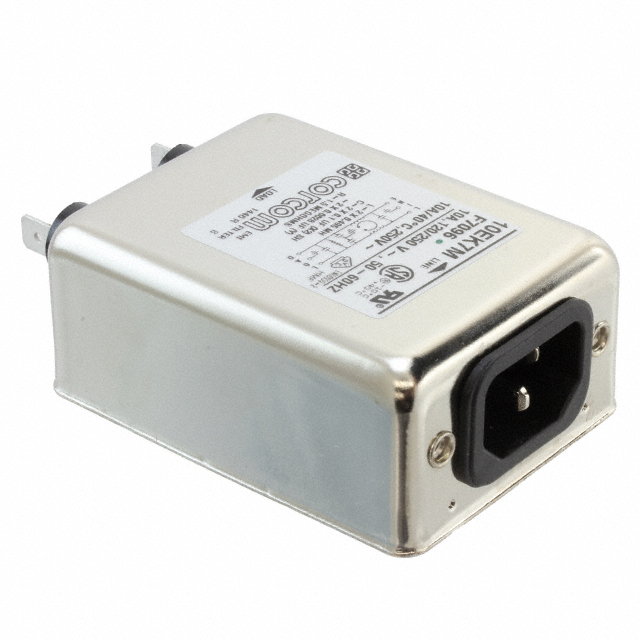

The TE Connectivity Corcom Filters 10EK7M is a single-phase EMC/EMI line filter designed for chassis mounting. It features a rated current of 10 A and an AC voltage rating of 250 VAC at 50/60 Hz. The unit utilizes a single-stage configuration with an inductance of 495µH. Termination is achieved via IEC 320-C14 input and quick-connect output terminals. Operating temperature ranges from -10°C to 40°C, and it holds CSA, UR, and VDE certifications.
Feature Summary
- Single-stage EMI/RFI filtering for general-purpose applications
- IEC 320-C14 input connector with quick-connect output terminals
- Chassis mount installation design
- Certified by CSA, UR, and VDE agencies
Applications
- High impedance load equipment
- Applications requiring pulsed RFI suppression
- Continuous or intermittent RFI mitigation systems
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm exact termination style and certification requirements. Confirm RoHS compliance status as datasheets may vary by production batch. Ensure the chassis mounting dimensions align with the target enclosure specifications before finalizing procurement orders.
Selection Notes
Select this component when a single-stage filter is sufficient for the required attenuation levels. The 10 A rating suits moderate power loads. Verify that the IEC 320-C14 inlet matches the upstream power cord and that the quick-connect terminals are compatible with downstream circuit board headers or wiring harnesses.
Part Context
This part belongs to the Corcom K series of single-phase filters. It serves as a variant of the 10EK7 model, distinguished by its specific terminal configuration. The series provides standardized EMI suppression for commercial and industrial electronic equipment requiring reliable noise reduction on AC power lines.
Replacement Considerations
The 10EK7 is a direct functional equivalent within the same series. Verify that the replacement part maintains the identical 495µH inductance and 10 A current rating to ensure circuit compatibility.
