10EMC1

Overview

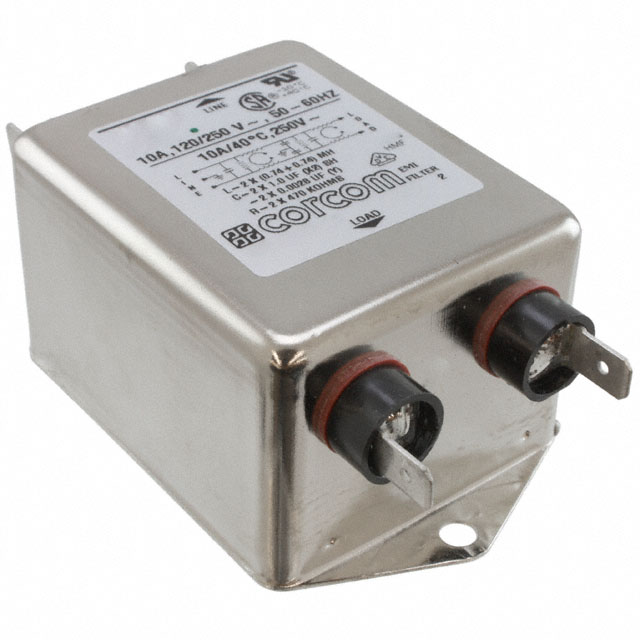

The TE Connectivity Corcom Filters 10EMC1 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated AC voltage of 250V and a continuous current of 10A at 50/60Hz frequencies. The component features a dual-stage configuration to provide high differential mode attenuation in the lower frequency range. Electrical connections are established via fast-on terminals, ensuring secure integration into power supply circuits.

Feature Summary

• Dual-stage RFI power line filter architecture
• High differential mode attenuation in lower frequencies
• Compact and cost-effective design

Applications

• General purpose power line filtering
• Chassis mounted equipment protection

Procurement Notes

Verify the specific datasheet for the 10EMC1 model to confirm detailed electrical parameters and mechanical dimensions. Ensure compatibility with existing chassis mounting holes and terminal spacing requirements before procurement. Cross-reference official manufacturer documentation for any recent product changes or obsolescence notices.

Selection Notes

Select this component for applications requiring compact, dual-stage EMI suppression at 10A. Verify that the fast-on terminal style matches the mating connector specifications. Confirm that the 250VAC rating aligns with the system's operating voltage and that the chassis mount form factor fits the enclosure constraints.

Part Context

This part belongs to the Corcom EMC series, which focuses on providing effective noise suppression in a space-saving footprint. The dual-stage design distinguishes it from single-stage alternatives by offering enhanced attenuation characteristics suitable for sensitive electronic environments requiring robust interference mitigation.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute option.
