10EMC3

Overview

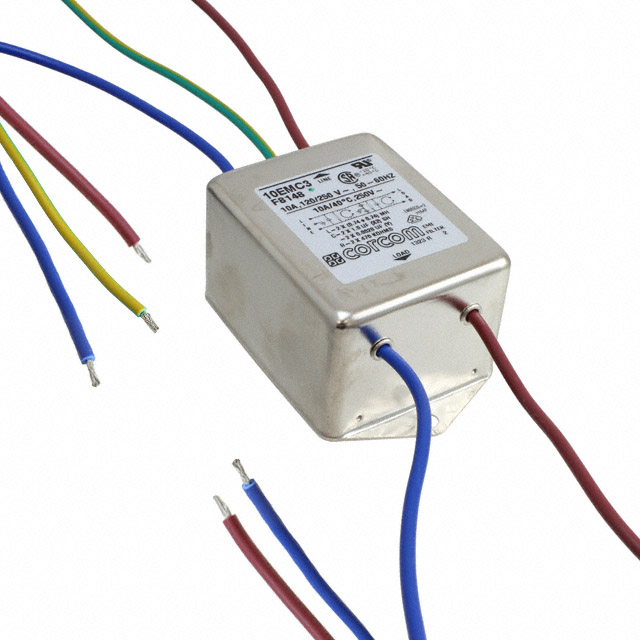

The TE Connectivity Corcom Filters 10EMC3 is a single-phase EMC/EMI line filter designed for electromagnetic interference suppression. It operates at 50/60Hz with a rated voltage of 250VAC and a current capacity of 10A. The component features a two-stage configuration and utilizes wire lead terminations for circuit integration. It is constructed for chassis mount installation, ensuring secure placement within equipment enclosures.

Feature Summary

• Dual-stage architecture for enhanced noise attenuation
• Compact design suitable for space-constrained installations
• Integrated wire leads for direct circuit connection

Applications

• Switching mode power supplies
• Industrial automation equipment
• Medical devices

Procurement Notes

Verify the specific datasheet version to confirm terminal specifications and mounting dimensions. Ensure the application environment remains within the operational temperature range. Confirm that the 10A rating aligns with peak load requirements. Check for any recent product change notices affecting compliance certifications or manufacturing locations before finalizing procurement.

Selection Notes

Select this model when a compact, dual-stage solution is required for single-phase AC lines up to 250VAC. The wire lead termination style simplifies integration into custom assemblies compared to panel-mount variants. Ensure the system ground path supports the filter's leakage current characteristics. Validate that the physical footprint fits the designated chassis area.

Part Context

This component belongs to the Corcom Filters portfolio, which specializes in EMI/RFI suppression solutions. The 10EMC3 represents a standard offering for general-purpose noise reduction in low-to-medium power applications. It complements larger industrial filters by providing a smaller form factor for consumer and commercial electronics.

Replacement Considerations

Consult official substitution guides for equivalent ratings. Verify that alternative components match the 10A current, 250VAC voltage, and two-stage topology. Ensure terminal types are compatible with existing wiring harnesses.
