10EP1

Overview

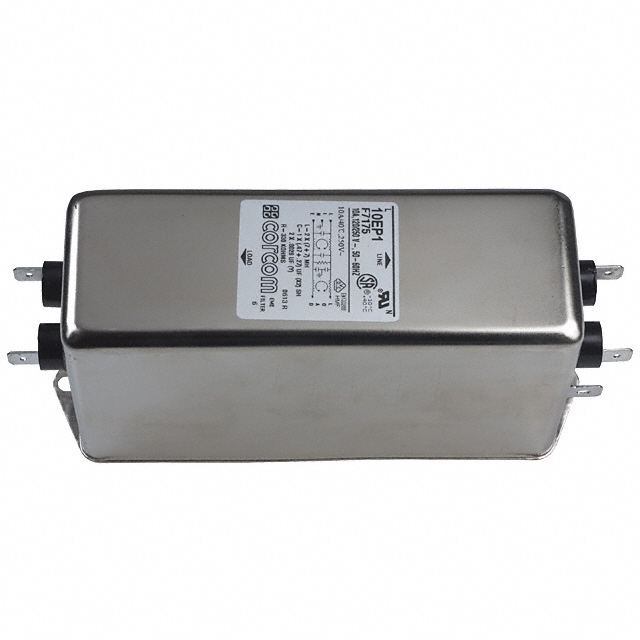

The TE Connectivity Corcom Filters 10EP1 is a single-phase EMI/RFI line filter designed for commercial applications. It features a flange mount installation style and utilizes fast-on quick connect terminals for circuit attachment. The component is rated for 10 A current and operates at AC voltages of 120 V or 250 V within the 50 Hz to 60 Hz frequency range. Certified by CSA, UL, and VDE, it ensures compliance with international safety standards.

Feature Summary

• Provides effective attenuation of electromagnetic and radio frequency interference in single-phase power circuits
• Features a robust flange mount design for secure panel integration
• Utilizes quick-connect terminals for simplified assembly and maintenance

Applications

• Commercial electronic equipment requiring EMI suppression
• Industrial control systems needing reliable power line filtering
• Medical devices adhering to strict EMC regulations

Procurement Notes

Verify that the specific order matches the 10EP1 part number to ensure correct voltage ratings and terminal types. Confirm flange mounting requirements align with panel specifications. Check for updated certification marks such as CSA, UL, and VDE on the final product documentation before integration into regulated equipment designs.

Selection Notes

Select this component when a single-stage or two-stage filtering solution is required for 10 A single-phase applications. Ensure the operating environment falls within the specified temperature range. Compare against other Corcom series filters if different mounting styles or higher current capacities are needed for the specific system architecture.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line conditioning. The EP series specifically addresses EMI/RFI noise reduction for commercial-grade electronics. It serves as a critical interface between the power source and sensitive loads, ensuring signal integrity and regulatory compliance in noisy electrical environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
