Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：ER, Curtis Industries/PREO
- Mfr：Curtis Industries
- Package：-
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

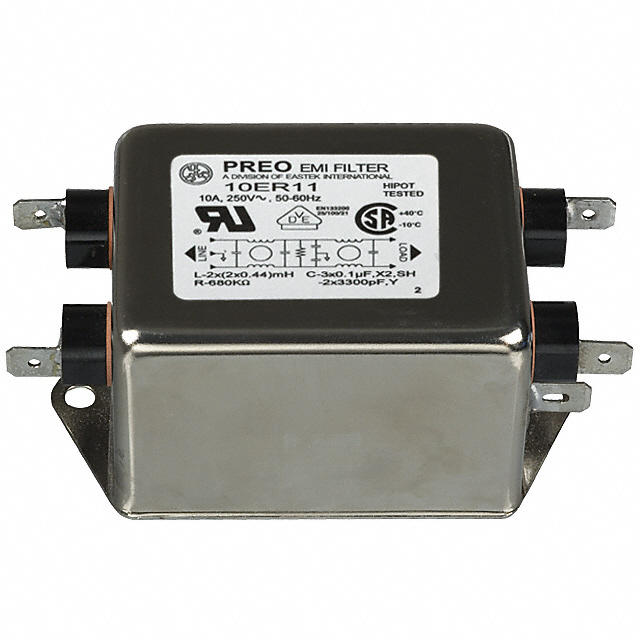

The Curtis Industries 10ER11 is a single-phase EMC/EMI line filter module designed for chassis mounting. It provides two-stage filtering with a rated current of 10A and operates at 250VAC, 50/60Hz. The unit features quick-connect terminals for simplified integration into power lines.
Feature Summary
- Two-stage EMI/RFI filtering architecture
- Chassis mount design for secure installation
- Quick-connect terminal interface
Applications
- Power line noise suppression
- EMC compliance in electronic equipment
- Industrial control systems
Procurement Notes
Verify the specific datasheet version as lifecycle status may vary by source. Confirm RoHS compliance requirements against project specifications. Ensure chassis mounting dimensions match the enclosure design before procurement.
Selection Notes
Select this component when two-stage attenuation is required for 10A applications. Verify that the quick-connect terminals align with existing wiring harnesses. Consider thermal management capabilities within the final assembly environment.
Part Context
This part belongs to Curtis Industries' standard electrical component portfolio, specializing in terminal blocks and EMI/RFI filters. The manufacturer has produced such components since 1935, focusing on custom and standard solutions for industrial markets.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases for cross-references if direct replacement is necessary.
FAQ
What is the terminal type for the 10ER11?
The 10ER11 utilizes quick-connect terminals for connection.
Is the 10ER11 suitable for AC power lines?
Yes, it is rated for 250VAC at 50/60Hz.
