10ER3

Overview

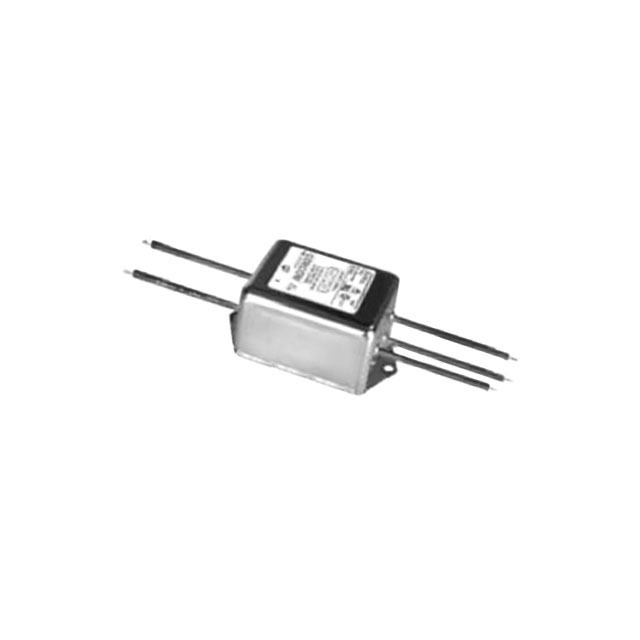

The TE Connectivity Corcom Filters 10ER3 is a single-phase EMC/EMI line filter rated for 10 A at 250 VAC and 50/60 Hz. It features a two-stage configuration designed to suppress electromagnetic interference in power lines. The component utilizes wire lead termination for circuit connection and is intended for chassis mounting applications.

Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Single-phase design for AC power line protection
• Wire lead termination style for direct circuit integration

Applications

• Industrial equipment power conditioning
• Medical device power supply filtering
• General electronic apparatus EMI reduction

Procurement Notes

Verify the specific datasheet version for the 10ER3 model, as detailed electrical parameters such as leakage current or insertion loss values are not present in the provided source material. Confirm that wire lead termination matches the target assembly requirements before procurement.

Selection Notes

Select this component when a two-stage single-phase filter is required for 250 VAC systems operating at 50/60 Hz with a 10 A current rating. Ensure the application supports chassis mounting and accommodates wire lead connections rather than panel mount or faston styles.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in EMI/RFI suppression solutions. The 10ER3 represents a specific configuration within their single-phase line filter portfolio, distinguished by its two-stage architecture and wire lead interface.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer cross-reference guides for verified alternatives.
