10ER7M

Overview

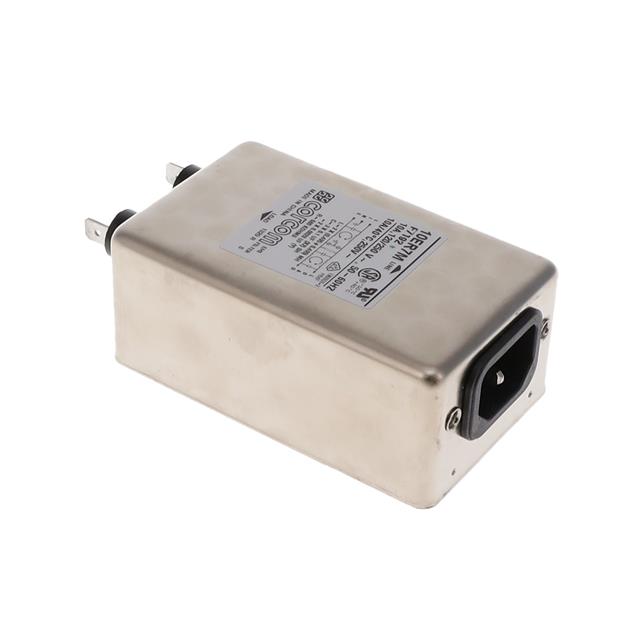

The TE Connectivity Corcom Filters 10ER7M is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current rating of 10A at frequencies of 50Hz and 60Hz. The component features a two-stage filtering configuration with quick connect termination style. It incorporates an integrated IEC 320-C14 connector interface, facilitating direct power entry integration while providing electromagnetic interference suppression.

Feature Summary

• Integrates IEC 320-C14 receptacle interface for standardized power entry
• Provides two-stage EMI/RFI noise attenuation for signal purity
• Supports chassis mounting for secure industrial installation

Applications

• Industrial machinery power supplies
• Medical equipment input stages
• Commercial IT infrastructure units

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status, as historical data indicates variations within the R series. Ensure the replacement part number matches the exact two-stage configuration and terminal type. Cross-reference certification marks such as UL or VDE against regional regulatory requirements before finalizing procurement orders.

Selection Notes

Select this model when a combined connector and filter solution is required to save panel space. The 10A rating suits moderate power loads. Verify that the chassis cutout dimensions accommodate the integrated housing. Confirm that the quick-connect terminals align with the downstream circuit board layout to ensure proper electrical mating.

Part Context

This component belongs to the Corcom R series, which specializes in compact power line filters. The series combines standard power inlet connectors with internal filtering components. This design approach simplifies assembly by reducing the number of discrete parts needed for EMI suppression in power entry modules.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
