10ESK3

Overview

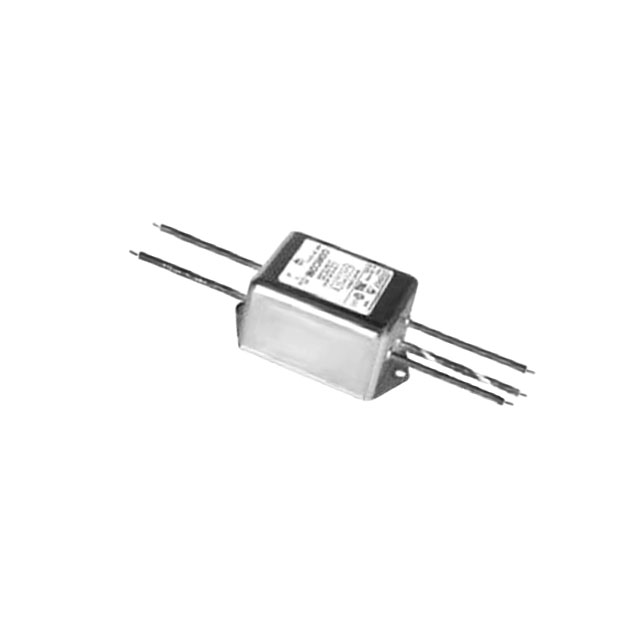

The TE Connectivity Corcom Filters 10ESK3 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current capacity of 10A at 50/60Hz frequencies. The component features a single-stage configuration with wire lead termination, intended for switch-mode power supply emission control.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Chassis mount installation style
• Wire lead termination method

Applications

• Switch-mode power supply emission control
• General purpose AC line filtering

Procurement Notes

Verify the specific datasheet version to confirm exact insertion loss curves and physical dimensions. Ensure the wire leads meet the required gauge and insulation specifications for the target application environment. Confirm RoHS compliance status if restricted substances are a constraint.

Selection Notes

Select this model when a single-stage solution is sufficient for the noise attenuation requirements. The 10A rating suits moderate load applications. Verify that the chassis mounting style and wire lead termination align with the system's mechanical and electrical interface constraints.

Part Context

This component belongs to the Corcom K Series, which provides high-performance RFI line filters. The series is engineered specifically for controlling emissions in switch-mode power supplies. It represents a standard solution within TE Connectivity's broad portfolio of electromagnetic interference suppression products.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided documentation.
