10ESK7M

Overview

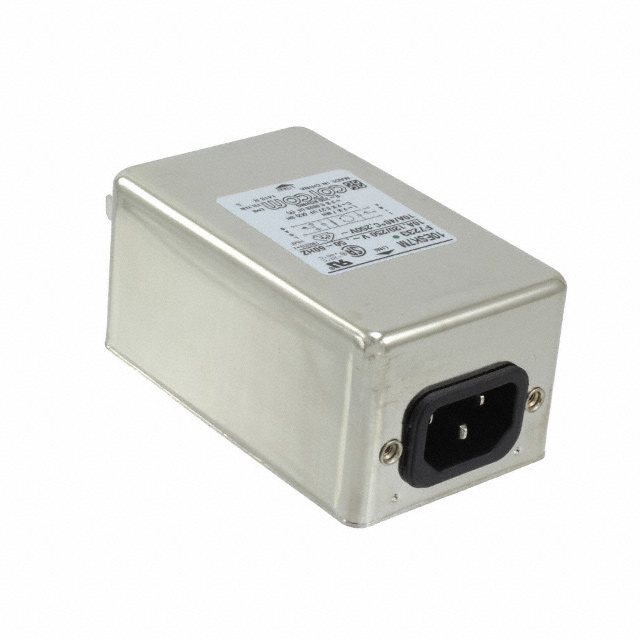

The TE Connectivity Corcom Filters 10ESK7M is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports an AC voltage rating of 250V and a current capacity of 10A at operating frequencies of 50Hz or 60Hz. The unit features a single-stage configuration with IEC 320-C14 input connectors and .250-inch faston terminal outputs. Certified by CSA, UR, and VDE, it operates within a temperature range of -10°C to 40°C.

Feature Summary

• Provides single-stage electromagnetic interference suppression for AC power lines
• Integrates IEC 320-C14 inlet receptacle for standardized power entry
• Utilizes quick-connect terminals for efficient circuit board integration

Applications

• Industrial control systems requiring EMI filtering
• Medical equipment power supplies
• Commercial electronic devices

Procurement Notes

Verify the specific suffix designation against official TE Connectivity documentation to confirm exact terminal style and certification requirements. Confirm RoHS compliance status as historical data indicates variations within the SK series. Ensure mechanical dimensions match the chassis opening before procurement.

Selection Notes

Select this component when a single-stage filter is sufficient for the application's noise attenuation needs. The 10A rating suits moderate power loads. Verify that the .250-inch faston pitch matches the target PCB layout. Consider thermal derating if ambient temperatures exceed standard operational limits.

Part Context

This part belongs to the Corcom SK Series, which offers single-stage filtering solutions. It serves as a variant within the broader TE Connectivity Corcom portfolio, distinguished by its specific current rating and terminal configuration compared to other models in the same family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
