10FBL3

Overview

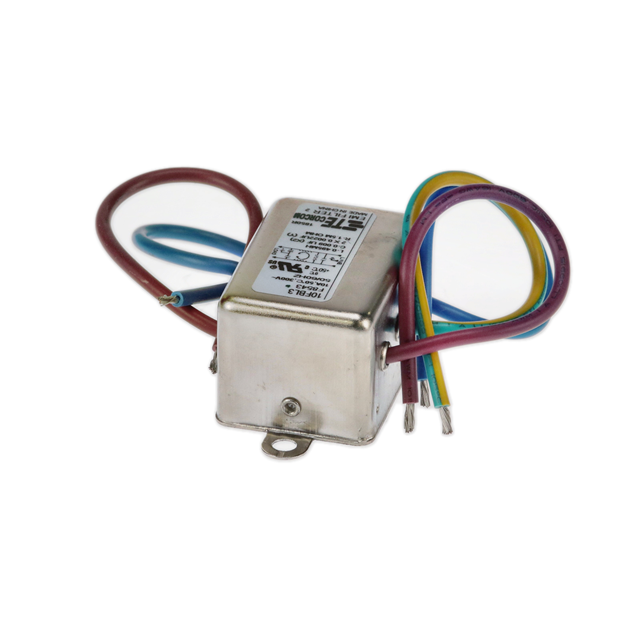

The TE Connectivity Corcom Filters 10FBL3 is a single-phase EMC/EMI line filter designed for lighting applications operating at 277VAC. It features a 10 A current rating and operates at 50/60Hz. The unit utilizes wire lead termination and employs a single-stage filtering configuration.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Optimized for lighting application environments
• Wire lead termination style

Applications

• Lighting systems
• Commercial electrical equipment

Procurement Notes

Verify the specific voltage rating against your system requirements, as this component is rated for 277VAC. Confirm that the wire lead termination method aligns with your assembly process. Ensure the single-stage filtering capability meets your electromagnetic interference suppression needs for the intended lighting application.

Selection Notes

Select this model when designing circuits for lighting applications requiring 277VAC operation. It is suitable for scenarios where single-stage filtering provides adequate noise reduction. Consider the wire lead termination style during PCB or chassis design to ensure proper connection compatibility.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 10FBL3 variant specifically targets lighting applications, distinguishing it from general-purpose models by its optimized performance characteristics for that sector.

Replacement Considerations

No public confirmed substitute part numbers are available.
