10HC-10

Overview

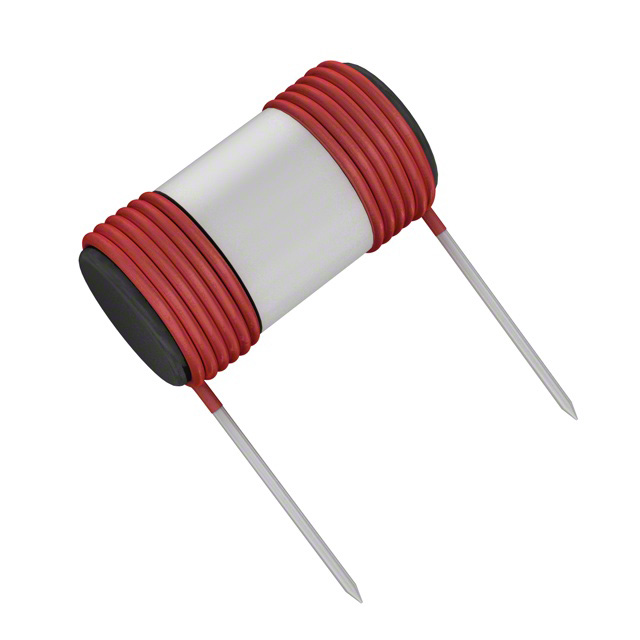

The Delevan 10HC-10 is a fixed power inductor designed for through-hole mounting. It features an unshielded drum core constructed with wirewound technology and ferrite material. The component provides an inductance of 10 µH with a tolerance of ±10%. It supports a maximum DC current of 10 A and has a maximum DC resistance (DCR) of 12 mΩ. The package is radial, horizontal cylinder (open), with dimensions of 1.375 inches in diameter and 0.687 inches in length.

Feature Summary

• Unshielded drum core design for high-current applications
• Wirewound construction utilizing ferrite core material
• Through-hole radial horizontal cylinder packaging

Applications

• Power supply filtering
• Choke applications in power circuits
• General-purpose power electronics

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the unshielded nature of the drum core aligns with your electromagnetic interference requirements. Ensure the through-hole footprint matches your PCB layout constraints before finalizing procurement.

Selection Notes

Select this component when a 10 µH inductance value is required with a 10 A current rating. The unshielded design is suitable where magnetic field containment is not critical. Verify that the radial horizontal orientation fits within the assembly space and that the lead spacing accommodates the target board design.

Part Context

The 10HC-10 belongs to Delevan's line of fixed power inductors. It is part of a series offering various inductance values and current ratings for power circuit applications. This specific model represents a standard through-hole solution for general power filtering needs.

Replacement Considerations

Cross-reference with other Delevan models in the same series for alternative current or inductance values. Verify mechanical dimensions and lead pitch compatibility if substituting with components from different manufacturers.
