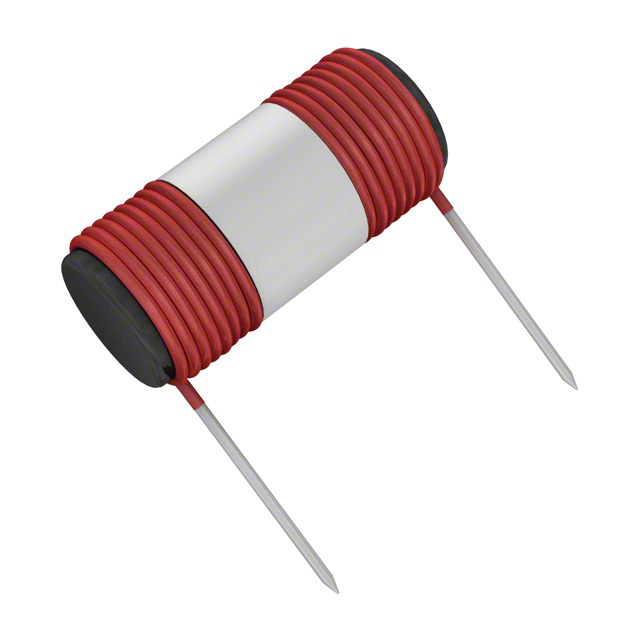

10HC-15

$19.17

Description：FIXED IND 15UH 10A 15 MOHM TH
Series：HC
Mfr：Delevan
Package：Bulk

SKU:ee9e10bcdf33 Category: Fixed Inductors Brand: Delevan

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FIXED IND 15UH 10A 15 MOHM TH
Series：HC
Mfr：Delevan
Package：Bulk
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：15 µH
Tolerance：±10%
Current Rating (Amps)：10:00 AM
Current - Saturation (Isat)：16A
Shielding：Unshielded
DC Resistance (DCR)：15mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-
Inductance Frequency - Test：1 kHz
Mounting Type：Through Hole
Package / Case：Radial, Horizontal Cylinder (Open)
Supplier Device Package：-
Size / Dimension：1.625" Dia x 0.687" L (41.28mm x 17.45mm)
Height - Seated (Max)：-

Download product information

10HC-15

Overview

The Delevan 10HC-15 is a high-current power inductor from the HC Series, designed for through-hole mounting. It features a fixed inductance of 15 uH with a tolerance of 10%. The component has a maximum DC resistance of 0.015 Ohms and supports a maximum DC current of 10 A. Key physical dimensions include a lead spacing of 35.94 mm. It belongs to the subcategory of Inductors, Chokes & Coils.

Feature Summary

High current handling capability up to 10 A
Low DC resistance of 0.015 Ohms for efficiency
Through-hole radial leaded construction

Applications

Power supply filtering
Choke applications in high current circuits
General purpose power electronics

Procurement Notes

Verify the manufacturer designation, as sources list both API Delevan and Delevan. Confirm the specific datasheet version matches the required electrical characteristics. Ensure the through-hole package style aligns with the PCB layout requirements before ordering.

Selection Notes

Select this component when a high current rating of 10 A is required alongside a 15 uH inductance value. The low DCR minimizes power loss. Consider the 35.94 mm lead spacing for board layout constraints compared to surface mount alternatives.

Part Context

This part belongs to the HC Series of power inductors by Delevan. It is categorized under Power Inductors - Leaded. The series is designed for robust performance in power applications requiring significant current handling.

Replacement Considerations

Cross-reference with other Delevan HC series parts for similar inductance values. Verify that substitute components meet or exceed the 10 A current rating and 0.015 Ohm DCR specifications.
