10IHE1

Overview

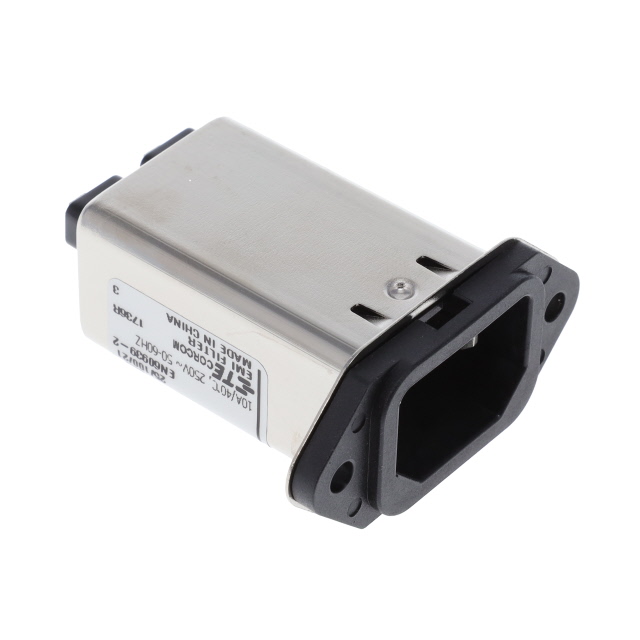

The TE Connectivity Corcom Filters 10IHE1 is a single-phase EMC/EMI line filter designed for medical applications. It features an IEC C18 connector style with quick connect termination. The unit supports a rated current of 10 A and operates at voltages of 120 VAC or 250 VAC within the 50 Hz to 60 Hz frequency range. This component utilizes a single-stage filtering configuration.

Feature Summary

• Designed specifically for medical equipment environments
• Integrates IEC C18 power entry module connectivity
• Provides single-stage EMI/RFI noise suppression

Applications

• Medical imaging systems
• Clinical diagnostic equipment
• Hospital power distribution units

Procurement Notes

Verify that the specific application requires the IEC C18 connector interface, as this differs from standard C14 modules. Confirm compliance with relevant medical safety standards required by the end equipment manufacturer. Ensure the single-stage filtering performance meets the electromagnetic compatibility requirements of the target system design.

Selection Notes

Select this model when a medical-grade filtered power entry module with an IEC C18 receptacle is required. It is suitable for systems needing 10 A capacity at 120 VAC or 250 VAC. Consider the single-stage topology if higher attenuation levels are not necessary for the specific noise environment.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters and power entry modules. The 10IHE1 variant is part of the filtered IEC power entry module category, distinct from unfiltered connectors or standalone chassis-mounted filters.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
