10KEBS1BFPDDM

Overview

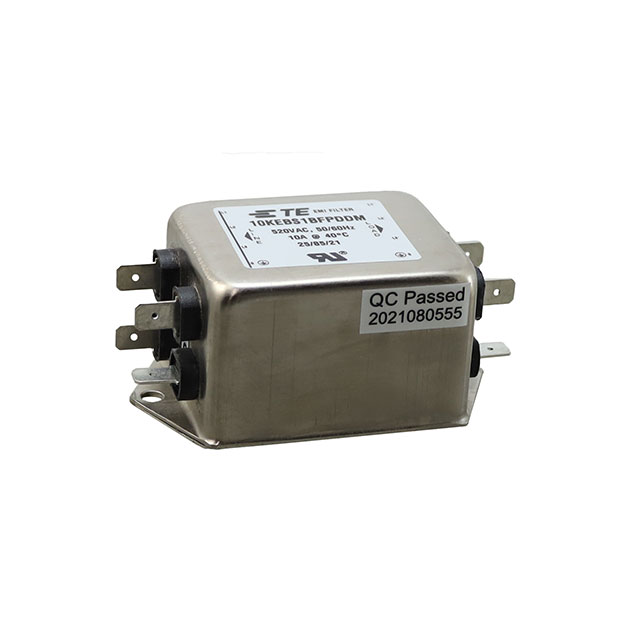

The 10KEBS1BFPDDM is a three-phase (Delta) EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It is rated for 10 A current and 520 VAC voltage, operating at 50 to 60 Hz. The unit features a single-stage filtering configuration designed for general-purpose applications. Installation is achieved via DIN rail mounting, providing secure positioning within electrical enclosures.

Feature Summary

• Three-phase Delta configuration for balanced load filtering
• Single-stage EMI/RFI suppression capability
• DIN rail mounting for standardized enclosure integration

Applications

• Industrial machinery power distribution
• General-purpose three-phase equipment protection
• Electrical panel EMI mitigation

Procurement Notes

Verify the specific phase configuration (Delta) and voltage rating (520VAC) against system requirements before procurement. Confirm that the single-stage attenuation meets the electromagnetic compatibility standards of the target application environment. Ensure DIN rail compatibility with existing panel infrastructure.

Selection Notes

Select this component when a three-phase Delta topology is required for 520VAC systems. The 10A rating defines the maximum continuous current capacity. Consider the single-stage design if higher attenuation levels are not necessary for the specific noise profile encountered in the installation site.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial environments. The product line includes various configurations for different phase types and mounting styles, addressing diverse electromagnetic interference challenges in power distribution networks.

Replacement Considerations

FN2080A-10-06 is listed as a similar substitute part number from TE Connectivity Schaffner.
