10KEMS10AFPD

Overview

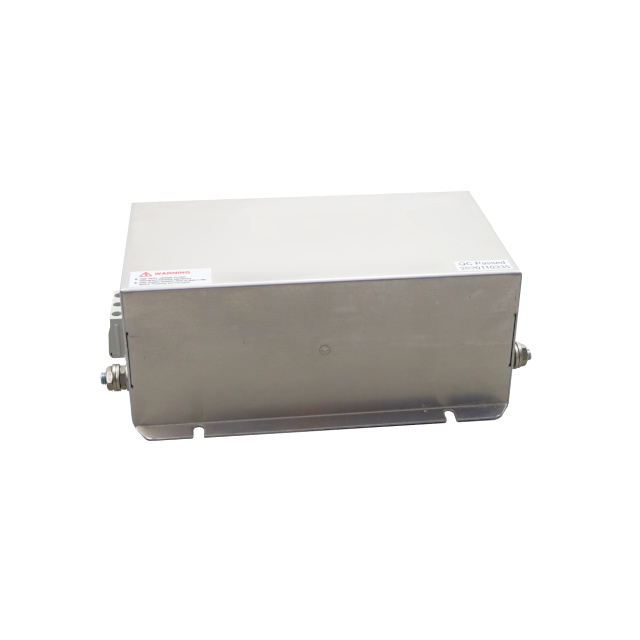

The 10KEMS10AFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a single-stage configuration designed for delta systems with a rated voltage of 440 VAC and a current rating of 10 A. The unit operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 18 mA. It utilizes chassis mounting and supports quick connect and screw termination types. Physical dimensions are 202 mm in length, 120 mm in width, and 80 mm in height. The component complies with UL and CSA standards and functions within an operating temperature range of -25 C to +85 C.

Feature Summary

• Provides superior performance electromagnetic interference filtering for three-phase power lines
• Engineered specifically for single-stage delta system configurations
• Supports secure installation via chassis mount style with versatile termination options

Applications

• Industrial machinery requiring three-phase power conditioning
• Commercial building infrastructure power distribution systems
• Equipment sensitive to electromagnetic interference in delta networks

Procurement Notes

Verify the specific datasheet version before integration, as manufacturing specifications may evolve. Confirm that the 440 VAC rating and 10 A current capacity align precisely with the target circuit requirements. Ensure the chassis mounting footprint matches the available enclosure space. Check for updated compliance documentation regarding UL and CSA certifications prior to final deployment.

Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels in a three-phase delta environment. The 10 A rating suits moderate load applications where compact dimensions are advantageous. Consider the quick connect and screw terminal flexibility for diverse wiring harness designs. Validate that the physical envelope fits the designated panel cutout without obstruction.

Part Context

This component belongs to the KEM series of power line filters from TE Connectivity / Corcom. The series offers various current ratings and stage configurations for different industrial needs. The 10KEMS10AFPD represents a mid-range option balancing size and performance for standard three-phase applications.

Replacement Considerations

Consult official TE Connectivity documentation for direct cross-references. Verify that any substitute maintains the same 440 VAC rating, 10 A capacity, and delta configuration. Ensure mechanical compatibility including chassis mount dimensions and terminal types.
