Product Detailed Parameters
- Description：LINE FILTER 440VAC 10A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

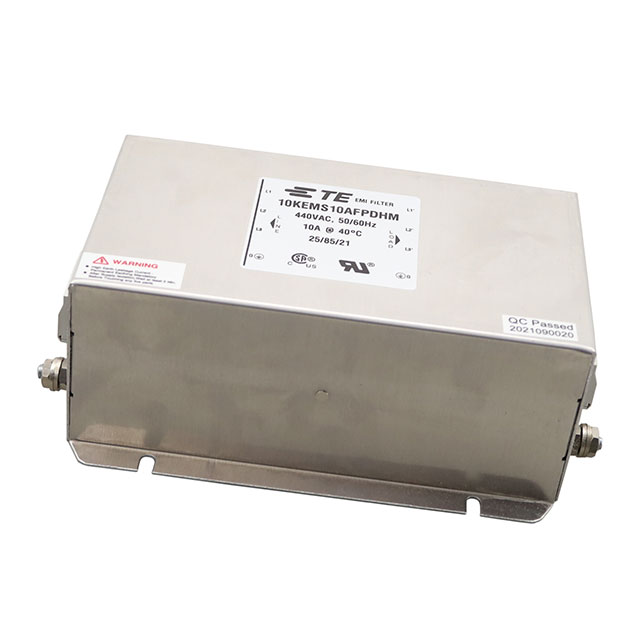

The 10KEMS10AFPDHM is a three-phase power line filter module manufactured by TE Connectivity Corcom Filters. It is designed for high-performance electromagnetic interference mitigation in industrial environments. The unit supports a nominal voltage of 440 VAC and operates at frequencies of 50 Hz to 60 Hz. Rated for a continuous current of 10 A, this single-stage filter utilizes terminal block connections for secure installation. The component is part of the KEM series, engineered to provide robust noise suppression while maintaining electrical safety standards.
Feature Summary
- Provides effective electromagnetic interference mitigation for three-phase delta systems
- Engineered as a single-stage filter for reliable noise suppression
- Designed for high-performance operation in demanding industrial applications
Applications
- Industrial automation machinery requiring EMI/EMC compliance
- Power supply units needing noise reduction on three-phase lines
- Electrical equipment operating within standard industrial frequency ranges
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the specific suffix matches the required configuration. Check current availability status as production lifecycles may affect stock levels. Ensure storage conditions comply with manufacturer guidelines to maintain performance integrity prior to installation.
Selection Notes
Select this model when a dedicated three-phase delta filter is required for 440 VAC systems. Ensure the 10 A current rating aligns with the load requirements. Verify that terminal block termination suits the existing wiring infrastructure. Consider the physical dimensions and mounting constraints before finalizing the design integration.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity Corcom Filters. The series is recognized for delivering high-density filtering solutions suitable for heavy-duty industrial use. The 10KEMS10AFPDHM represents a specific configuration within this lineup, optimized for three-phase delta applications requiring precise noise control.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference specifications such as current rating, voltage, and phase configuration to ensure compatibility.
