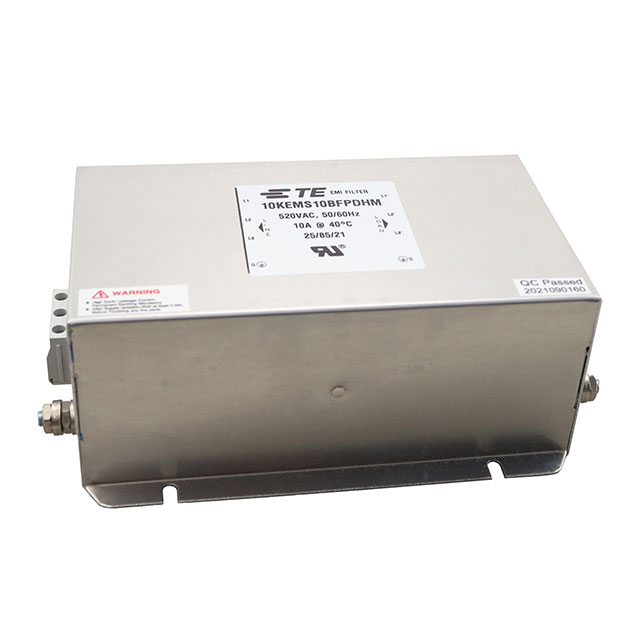

10KEMS10BFPDHM

$146.93

Description：LINE FILTER 520VAC 10A CHASS MNT
Series：KEM
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:46ee88b32a80 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 10A CHASS MNT
Series：KEM
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：10:00 AM
Frequency - Operating：50 ~ 60Hz
Applications：Converter
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

10KEMS10BFPDHM

Overview

The TE Connectivity Corcom Filters 10KEMS10BFPDHM is a three-phase EMI/EMC power line filter designed for general-purpose applications. It features a chassis mount configuration with terminal block termination. The component has a voltage rating of 520 VAC and a current rating of 10 A. It operates at a frequency of 50 Hz and exhibits a leakage current of 18 mA. The unit complies with UL and CSA standards.

Feature Summary

Provides electromagnetic interference mitigation for three-phase circuits
Utilizes terminal block connections for secure wiring
Designed for chassis mounting in industrial enclosures

Applications

General-purpose industrial equipment
Three-phase power distribution systems
Electromagnetic compatibility filtering

Procurement Notes

Verify the specific datasheet version before procurement, as product specifications may be subject to change. Confirm that the terminal block termination style matches the existing panel design requirements. Ensure the chassis mounting dimensions align with the available enclosure space. Check for any regional compliance certifications required for the final assembly destination.

Selection Notes

Select this model when a three-phase solution with a 10 A rating and 520 VAC capability is required. Consider the 18 mA leakage current specification against safety isolation limits. Evaluate the terminal block interface against available wire gauges and connection tools. Verify that the chassis mount form factor fits the mechanical constraints of the target application.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial environments. The KEM series typically addresses high-current three-phase applications. This specific part number represents a standard configuration within the broader portfolio of electromagnetic interference suppression products offered by the manufacturer.
