Product Detailed Parameters
- Description：LINE FILTER 520VAC 10A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

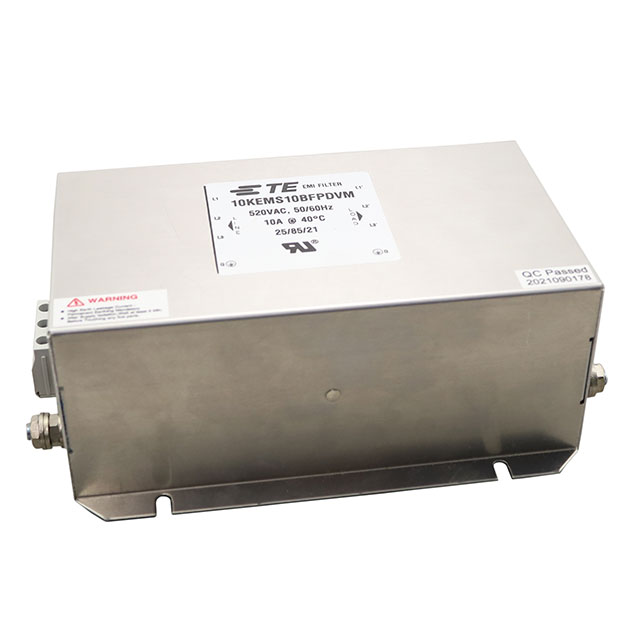

The TE Connectivity Corcom Filters 10KEMS10BFPDVM is a three-phase power line filter designed for general-purpose applications. It features a current rating of 10 A and a voltage rating of 520 VAC. The unit operates at frequencies of 50 Hz or 60 Hz and utilizes a terminal block connection style. Designed for DIN rail mounting, this single-stage EMI/EMC filter provides electromagnetic interference mitigation in industrial environments.
Feature Summary
- Provides single-stage electromagnetic interference mitigation for three-phase power lines
- Engineered for robust operation within industrial converter systems
- Facilitates secure electrical connections via terminal block interface
Applications
- Industrial converter systems
- Three-phase power distribution networks
- General-purpose industrial machinery requiring EMI suppression
Procurement Notes
Verify the specific suffix BFPDVM against official TE Connectivity documentation to confirm exact terminal block configuration and mounting specifications. Ensure compatibility with 520 VAC systems and 10 A load requirements before integration. Confirm that DIN rail mounting infrastructure supports the physical dimensions and weight of the component.
Selection Notes
Select this model when a single-stage solution is sufficient for three-phase noise reduction. The 10 A rating suits moderate power loads, while the 520 VAC capability accommodates standard industrial voltages. Terminal block termination offers flexibility for field wiring compared to fixed leads.
Part Context
This component belongs to the Corcom KEM series of power line filters. The series is characterized by high reliability and compliance with international safety standards. The KEM designation typically indicates a specific form factor and performance tier within the broader TE Connectivity Corcom portfolio.
Replacement Considerations
Consult official TE Connectivity substitution guides for direct replacements. Verify that any alternative maintains identical phase configuration, current/voltage ratings, and mounting style to ensure system compatibility.
