Product Detailed Parameters
- Description：LINE FILTER 440VAC 10A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

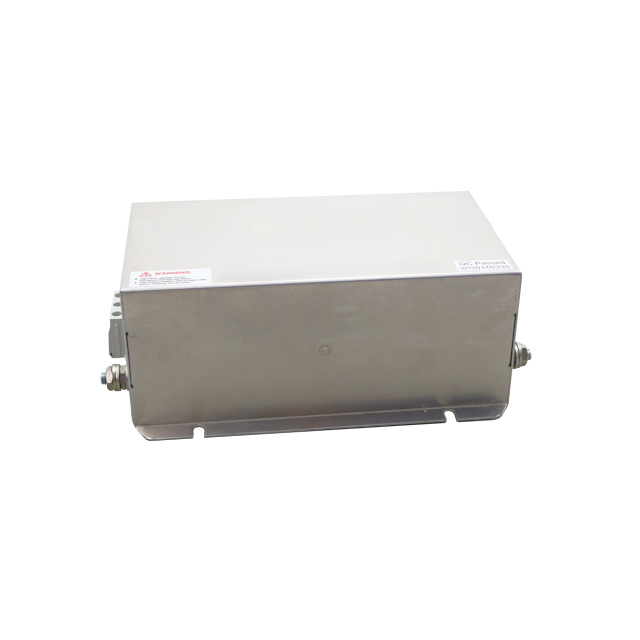

The TE Connectivity Corcom Filters 10KEPS10AFPW is a three-phase Wye EMC/EMI power line filter designed for industrial applications. It features a rated current of 10 A and a voltage rating of 440 VAC at operating frequencies of 50 Hz and 60 Hz. The unit utilizes terminal block termination and chassis mounting. Physical dimensions are 122 mm in length, 109 mm in width, and 70 mm in height. It carries UL and CSA compliance certifications.
Feature Summary
- Provides superior electromagnetic interference mitigation for three-phase power systems
- Engineered for robust performance in industrial equipment environments
- Utilizes a single-stage filtering architecture for effective noise suppression
Applications
- Industrial automation machinery
- Climate control systems
- Three-phase motor drives
Procurement Notes
Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that the terminal block interface matches existing panel layouts. Ensure the chassis mounting hole pattern aligns with the enclosure design. Validate that the 10 A current rating meets the operational load requirements without derating issues under maximum ambient temperatures.
Selection Notes
Select this model when a compact three-phase filter is required for moderate power loads up to 10 A. The 440 VAC rating suits standard industrial distribution networks. Consider the physical footprint constraints, as the unit measures 122 x 109 x 70 mm. Terminal block connections offer secure wiring for fixed installations compared to quick-connect alternatives.
Part Context
This component belongs to the KEP series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 10KEPS10AFPW represents the lower end of the current capacity spectrum within this specific product family, targeting smaller industrial loads.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models by comparing electrical ratings, physical dimensions, and mounting configurations against the original specification sheet.
