Product Detailed Parameters
- Description：LINE FILTER 440VAC 10A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

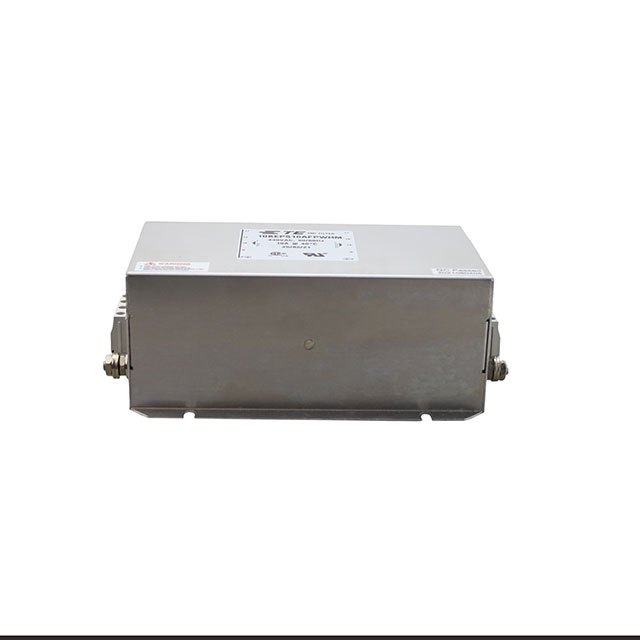

The 10KEPS10AFPWHM is a three-phase power line filter manufactured by TE Connectivity Corcom. It features a single-stage configuration designed for wye-connected systems with a rated AC voltage of 440 VAC and a current rating of 10 A. The unit operates at frequencies of 50 Hz to 60 Hz and utilizes terminal block connections for input and output. Physical dimensions include chassis or DIN rail mounting options, with specific housing measurements provided in technical documentation.
Feature Summary
- Single-stage electromagnetic interference mitigation for three-phase circuits
- Terminal block interface for secure electrical connections
- Compliance with UL and CSA safety standards
Applications
- Industrial automation systems
- Climate control equipment
- Power converter integration
Procurement Notes
Verify the exact datasheet version before procurement, as specifications may vary between revisions. Confirm that the 440 VAC rating aligns with your system's nominal voltage. Ensure terminal block compatibility with existing wiring harnesses. Check for RoHS and REACH compliance requirements specific to your region. Validate mounting style preferences against available installation hardware.
Selection Notes
Select this model when a single-stage EMI filter is required for 10 A three-phase applications. Compare leakage current specifications against regulatory limits if strict safety thresholds apply. Consider the physical footprint constraints relative to chassis or DIN rail availability. Evaluate thermal performance within the specified operating temperature range.
Part Context
This component belongs to the Corcom KEP series of power line filters. The series offers various current ratings and voltage configurations for industrial EMC needs. The 10KEPS10AFPWHM represents the 10 Ampere variant within this product family, providing standardized filtering solutions for general-purpose industrial power distribution networks.
Replacement Considerations
Consult official TE Connectivity documentation for direct cross-reference part numbers. Verify that any substitute maintains identical current and voltage ratings. Ensure mechanical mounting interfaces match existing infrastructure. Confirm that replacement units meet the same UL and CSA certification requirements.
