Product Detailed Parameters
- Description：LINE FILTER 520VAC 10A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

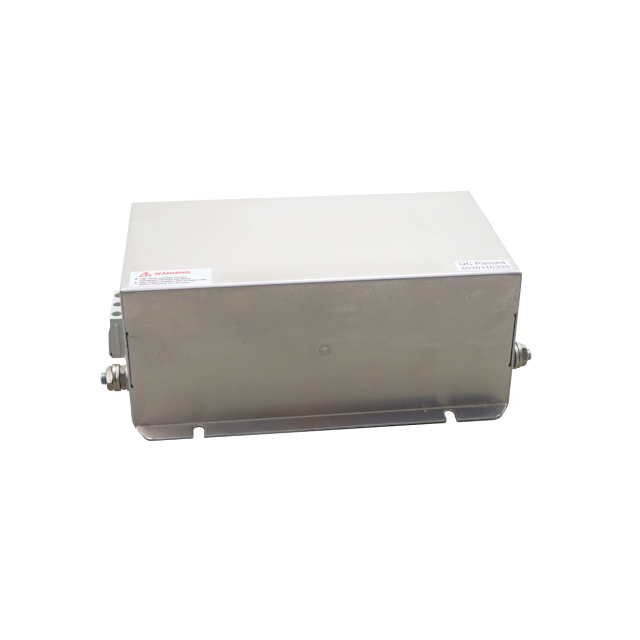

The TE Connectivity Corcom Filters 10KEPS10BFPW is a three-phase power line filter designed for industrial applications. It operates at a rated voltage of 520 VAC and supports a current rating of 10 A. The unit utilizes a single-stage configuration with terminal block connections and chassis mount installation style. Operating frequencies include 50 Hz and 60 Hz. The device features a Wye configuration to suppress electromagnetic interference across all phases, ensuring compliance with UL and CSA standards.
Feature Summary
- Provides three-phase EMI/EMC noise suppression using a single-stage filtering architecture
- Designed for chassis mounting with secure terminal block electrical connections
- Operates effectively within standard industrial frequency ranges of 50 Hz and 60 Hz
Applications
- Industrial machinery protection against electromagnetic interference
- Power conditioning for sensitive three-phase electronic equipment
- General purpose EMC filtering in industrial control panels
Procurement Notes
Verify the specific part number 10KEPS10BFPW against official TE Connectivity documentation to confirm current availability status. Ensure that the required 520 VAC rating and 10 A current capacity align with your system design parameters before procurement. Check for any obsolescence notices or lifecycle changes directly from the manufacturer.
Selection Notes
Select this component when a single-stage, three-phase filter is required for 520 VAC systems. Confirm that terminal block termination suits your wiring infrastructure and that chassis mounting constraints are met. Verify that the 10 A current rating provides adequate margin for your specific load requirements without exceeding thermal limits.
Part Context
This model belongs to the KEPS series of power line filters manufactured by TE Connectivity under the Corcom brand. The series is characterized by robust construction for industrial environments. The specific suffix indicates terminal block termination and a Wye configuration suitable for three-phase AC power distribution networks.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation for direct replacements or cross-reference similar models within the KEPS series based on voltage and current ratings.
