Product Detailed Parameters
- Description：LINE FILTER 520VAC 10A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

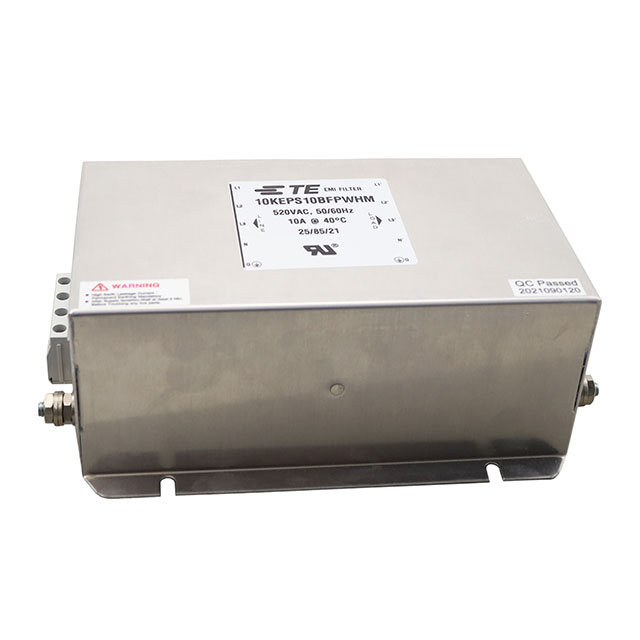

The 10KEPS10BFPWHM is a three-phase Wye configuration EMC/EMI power line filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 520 VAC and a current rating of 10 A at operating frequencies of 50 Hz and 60 Hz. The component utilizes terminal block termination and features a leakage current of 8.5 mA. Designed for chassis or DIN rail mounting, it operates within a temperature range of -25°C to +85°C. The unit holds UL and CSA compliance certifications.
Feature Summary
- Provides single-stage EMI/EMC filtering for three-phase power systems
- Supports versatile installation via chassis or DIN rail mounting methods
- Ensures regulatory compliance with UL and CSA standards
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise suppression
- Electrical panel integration
Procurement Notes
Verify the specific datasheet version before procurement as product specifications may evolve. Confirm that the terminal block interface matches existing wiring harnesses. Ensure the chassis or DIN rail mounting method aligns with the enclosure design. Validate that the 520 VAC and 10 A ratings meet the system requirements without exceeding limits.
Selection Notes
Select this model when a compact, lightweight solution for three-phase applications is required. The dual-mounting capability allows flexibility in panel layout. Verify that the 8.5 mA leakage current is acceptable for sensitive downstream electronics. Ensure the operating temperature range covers the environmental conditions of the installation site.
Part Context
This component belongs to the Corcom KEP series of superior performance EMI filters. It is designed for general-purpose industrial use where space constraints and easy installation are priorities. The series offers various current ratings and configurations to suit different power distribution needs.
Replacement Considerations
Consult official TE Connectivity documentation for direct substitutes. Verify compatibility regarding mounting style, terminal type, and electrical ratings before replacing.
