10KESS1AFPWDM

Overview

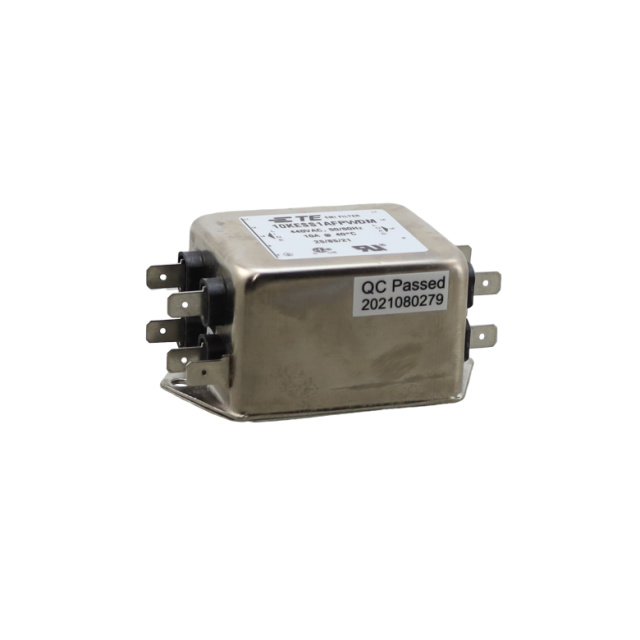

The 10KESS1AFPWDM is a three-phase general-purpose power line filter manufactured by TE Connectivity Corcom Filters. It features a DIN rail mounting style and utilizes a single-stage filtering configuration. The component is rated for an AC voltage of 440 VAC and supports a current capacity of 10 A. Designed for operation at frequencies of 50 Hz and 60 Hz, this filter provides EMI suppression for industrial applications requiring robust power conditioning.

Feature Summary

• Three-phase general-purpose EMI filtering
• DIN rail mounting configuration
• Single-stage filtering topology

Applications

• Industrial machinery power conditioning
• Three-phase equipment noise suppression
• General-purpose power line filtering

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before integration. Confirm that the 440 VAC rating and 10 A current capacity align with your system requirements. Ensure the DIN rail mounting style is compatible with your enclosure design. Check for any specific compliance certifications required for your target market.

Selection Notes

Select this model when a three-phase solution is required for 440 VAC systems. The single-stage design offers a balance between performance and size. Verify that the 10 A current rating meets the load demands. Consider the DIN rail installation method for ease of assembly in control panels.

Part Context

This component belongs to the Corcom power line filter series, designed for electromagnetic interference suppression in electrical systems. It addresses noise issues in three-phase power distribution networks. The product is part of TE Connectivity's portfolio of power conditioning solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
