Product Detailed Parameters
- Description：LINE FILTER 520VAC 10A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

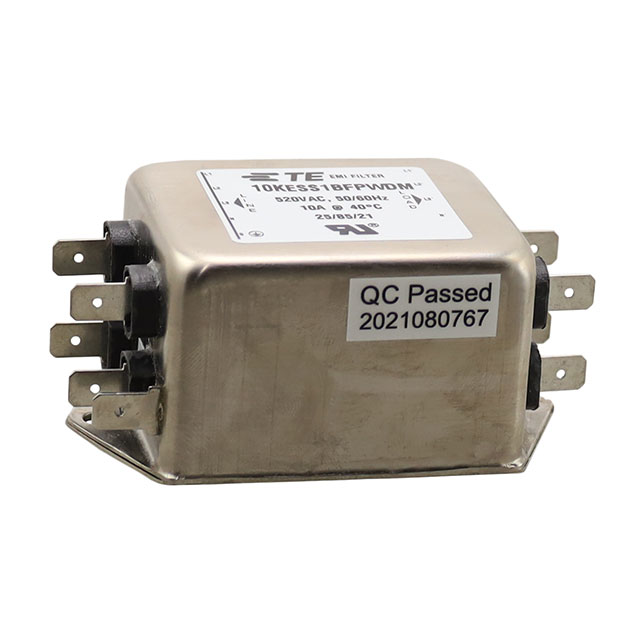

The TE Connectivity Corcom Filters model 10KESS1BFPWDM is a general-purpose power line filter designed for three-phase applications. It features a chassis mount configuration and supports a rated voltage of 520 VAC with a current capacity of 10 A. The unit incorporates a single-stage filtering architecture to manage electromagnetic interference. This component is engineered for industrial environments requiring robust AC power conditioning.
Feature Summary
- Provides single-stage EMI/RFI suppression for three-phase power lines
- Designed for direct chassis mounting in industrial enclosures
- Supports high-voltage AC operations up to 520 VAC
Applications
- Industrial machinery power input stages
- Three-phase motor drive systems
- Commercial equipment requiring EMI mitigation
Procurement Notes
Verify the specific suffix requirements against the manufacturer's official documentation before ordering, as variations may exist. Confirm that the chassis mounting dimensions align with your enclosure design. Ensure the operating environment temperature and humidity specifications meet the component's rated limits for reliable performance.
Selection Notes
Select this component when a single-stage solution is sufficient for your three-phase EMI reduction needs. It is appropriate for systems operating at 520 VAC where space constraints favor chassis mounting over DIN rail installation. Evaluate the required attenuation levels to ensure single-stage filtering meets your compliance standards.
Part Context
This part belongs to the Corcom Filters series by TE Connectivity, specializing in electromagnetic interference solutions. The product line includes various configurations for different phase requirements and mounting styles. This specific model addresses the need for compact, high-current filtering in three-phase AC distribution networks.
Replacement Considerations
Consult the official Corcom selector charts for verified substitute part numbers. Cross-reference electrical ratings and physical dimensions to ensure compatibility with existing system designs.
